Description

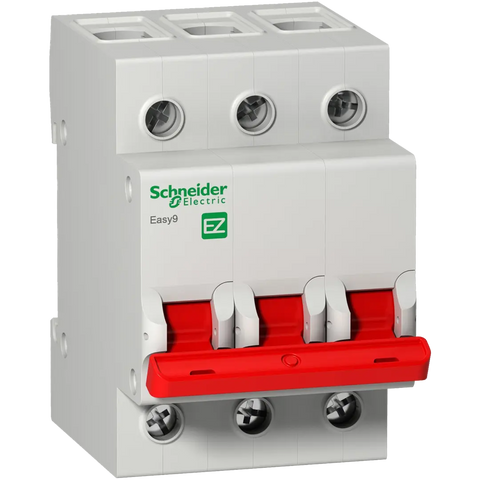

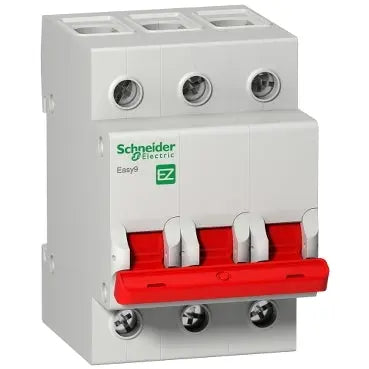

xThis Easy9 switch disconnector has 3 poles and a rated current of 63 A at 400 V. It is suitable for isolation in distribution networks, featuring a short-circuit making capacity of 0.945 kA and a rated insulation voltage of 500 V.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CE IEC 60947-3 |
| Temperature: Operating | -5°C to 55 °C |
| Part Depth (mm) | 66.5mm |
| Part Width (mm) | 54mm |
| Part Height (mm) | 81mm |
| Tightening Torque | 3.5 Nm |
| Connection Style | P Poles |
| Connection Type | Tunnel type terminal (top or bottom) 1…35 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible |
| Rated Operating Voltage | 400 VAC |
| Mounting Type | Clip-on DIN rail |
| Current Rating / Rated Current | 63 A |
| Operating Period | 8500 cycles (Mechanical) / 1500 (Electrical) |
| Colour | Grey |
| RAL Code | RAL 7035 |
