Description

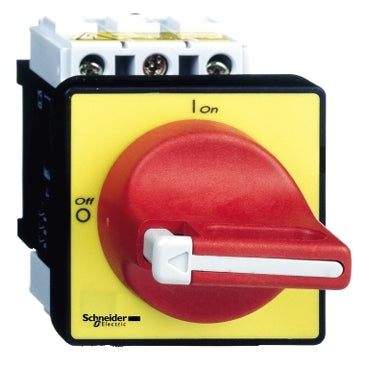

xThis emergency stop switch disconnector from the TeSys VARIO range provides a high-performance solution for door-mounted systems. It is rated for 32 A and offers up to 15 kW of operational power at 400 V.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 IP65 |
| Country of Origin | Germany |
| Compliance/Certifications | CCC / CSA / GL / IEC 60947-3 / UL / UKCA |
| Part Width (mm) | 60mm |
| Part Height (mm) | 74mm |
| Weight (g) | 250g |
| Tightening Torque | 2.1 Nm |
| Connection Type | Power circuit: screw clamp terminals10 mm² - solid Power circuit: screw clamp terminals6 mm² - flexible - with cable end |
| Rated Operating Voltage | 690 VAC |
| Current Rating / Rated Current | 10 kA |
| Warranty | 18 Months |
