Description

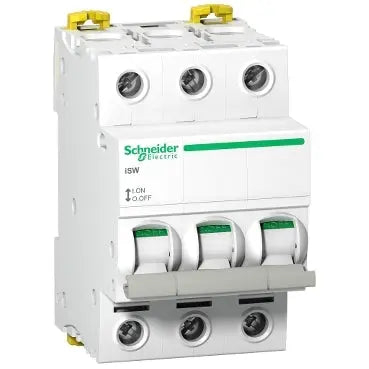

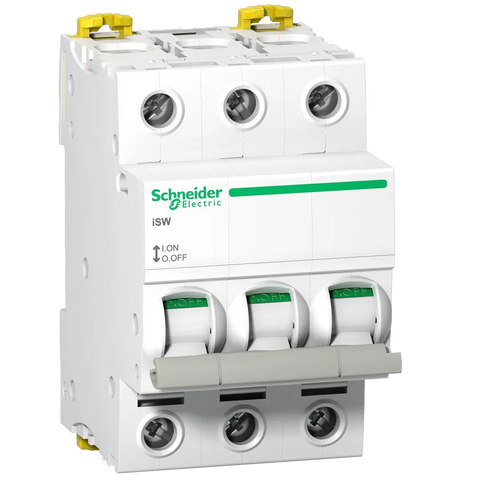

xThis three-pole switch disconnector offers reliable control and isolation in AC systems with a rated current of 63 A. It features a 5 kA short-circuit making capacity, mechanical durability of 20,000 cycles, and supports DIN rail mounting.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | EN 60947-3 / IEC 60947-3 |
| Temperature: Operating | -25°C to 60 °C |
| Part Depth (mm) | 73mm |
| Part Width (mm) | 54mm |
| Part Height (mm) | 85mm |
| Packaging size / unit | 1 / 4 / 44 pc(s) |
| Tightening Torque | 3.5 Nm |
| Connection Type | Tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid / Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible / Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule |
| Rated Operating Voltage | 415 VAC 50/60 Hz |
| Mounting Type | DIN rail / Fixed |
| Current Rating / Rated Current | 63 A |
| Operating Period | 20000 cycles (mechanical) / 10000 cycles (electrical) |
| Warranty | 18 Months |
| Colour | White |
