Description

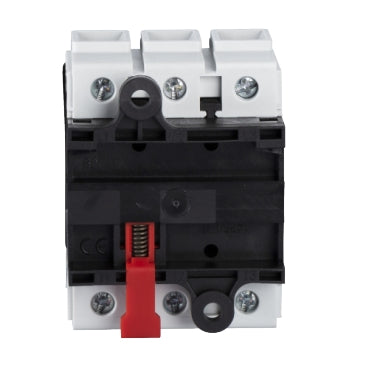

xThis switch disconnector is part of the TeSys VARIO range, designed for emergency stop and ON/OFF control applications. It supports a high-performance level with a rated operational current of 63 A and can be mounted on doors using a rotary handle mechanism. Ideal for use in industrial and commercial environments, it offers robust protection with a thermal withstand of up to 63 A and short-circuit protection of 10 kA at 400 V.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 IP65 |
| Country of Origin | Germany |
| Compliance/Certifications | CCC / CSA / GL / IEC 60947-3 / UL / UKCA |
| Temperature: Operating | -20°C to 50°C |
| Part Width (mm) | 60mm |
| Part Height (mm) | 83mm |
| Weight (g) | 560g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 4 Nm |
| Connection Style | 3 Poles / 3NO |
| Connection Type | Screw Clamp Terminals |
| Type of Voltage | AC/DC |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | 4 screws handle |
| Current Rating / Rated Current | 41.5 A |
| Operating Period | 30000 cycles (Mechanical) / 30000 cycles AC-21\n30000 cycles DC-1...5 (Electrical) |
| Warranty | 18 Months |
| Colour | Red / Yellow |
