Description

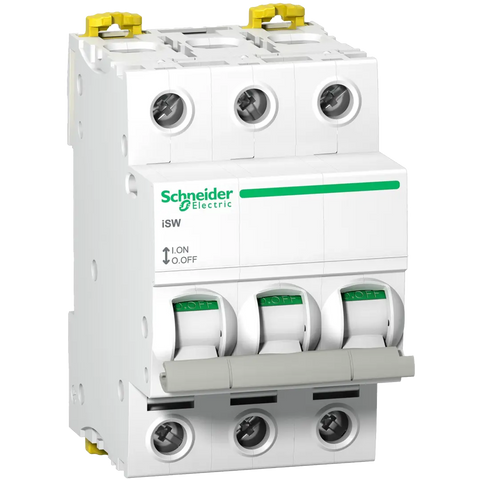

xThis three-pole switch disconnector is designed for control and isolation in AC systems, with a rated current of 100 A and a 5 kA short-circuit making capacity. It provides high mechanical durability and is compatible with DIN rail installations.
Specifications
x| IP Rating | IP20 / IP40 |
| Compliance/Certifications | EN/IEC 61009-1 / EN/IEC 61009-2-1 |
| Temperature: Operating | -25°C to 60 °C |
| Part Depth (mm) | 73mm |
| Part Width (mm) | 54mm |
| Part Height (mm) | 85mm |
| Packaging size / unit | 1 / 4 / 44 pc(s) |
| Tightening Torque | 3.5 Nm |
| Connection Type | Tunnel type terminal downside for 1 cable(s) 1 - 25 mm² rigid without cable end / Tunnel type terminal downside for 1 cable(s) 1 - 16 mm² flexible without cable end / Tunnel type terminal downside for 1 cable(s) 1 - 16 mm² flexible with cable end |
| Type of Voltage | AC |
| Rated Operating Voltage | 415 VAC 50/60 Hz |
| Mounting Type | Clip-on / DIN rail |
| Current Rating / Rated Current | 100 A |
| Warranty | 18 Months |
| Colour | White |
