Description

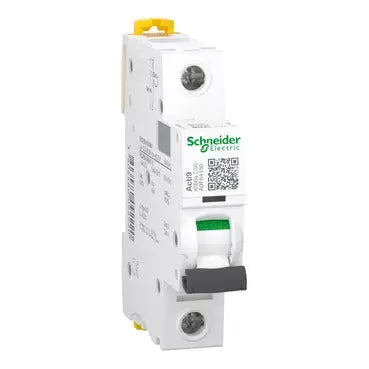

xThe Acti9 iC60 1-pole, 50 A miniature circuit breaker with a C curve is suitable for distribution networks. It has a breaking capacity of 4500 A at 230 V AC and 6 kA at 220-240 V AC, providing robust protection on DIN rail mounts.
Specifications
x| IP Rating | IP20 B conforming to EN/IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | EN 60898-1 / EN 60947-2 / IEC 60898-1 / IEC 60947-2 |
| Temperature: Operating | -35 °C to 70 °C |
| Part Width (mm) | 18mm |
| Packaging size / unit | 1 / 12 / 132 pc(s) |
| Tightening Torque | 3.5 Nm |
| Connection Style | 1-pole |
| Connection Type | Single terminal (top or bottom) 1-25 mm² flexible / Single terminal (top or bottom) 1-35 mm² rigid |
| Max Frequency | 50/60 Hz |
| Type of Voltage | AC |
| Mounting Type | DIN rail / Removable comb busbar installed |
| Current Rating / Rated Current | 50 A |
| Colour | White |
