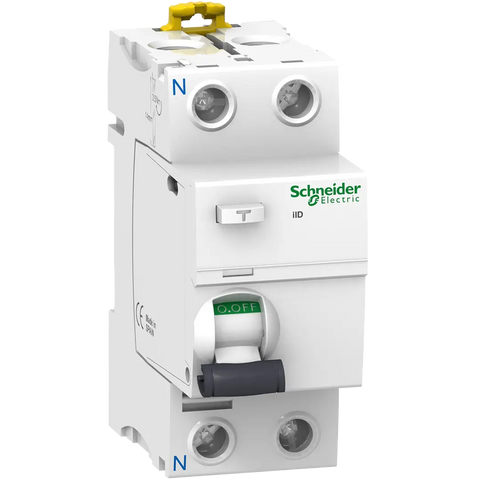

Schneider RCCB, type AC, 2-pole, 30mA, 40A Part number A9R41240

This 2-pole residual current circuit breaker (RCCB) delivers 40 A rated current with 30 mA earth-leakage sensitivity. Designed for AC systems, it offers instantaneous protection with voltage-independent tripping and supports DIN rail mounting for easy installation.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 4 left in stock
Description
Description
x
This 2-pole residual current circuit breaker (RCCB) delivers 40 A rated current with 30 mA earth-leakage sensitivity. Designed for AC systems, it offers instantaneous protection with voltage-independent tripping and supports DIN rail mounting for easy installation.
Specifications
Specifications
x
IP RatingIP20 / IP40
Compliance/CertificationsEN/IEC 61008-1 / EN/IEC 61008-2-1
Temperature: Operating-5°C to 60 °C
Part Depth (mm)73.5mm
Part Width (mm)36mm
Part Height (mm)91mm
Weight (g)210g
Packaging size / unit1 / 54 / 432 pc(s)
Tightening Torque3.5 Nm
Connection TypeSingle terminal top or bottom 1 - 35 mm² rigid / Single terminal top or bottom 1 - 25 mm² flexible / Single terminal top or bottom 1 - 25 mm² flexible with ferrule
Max Frequency50/60 Hz
Type of VoltageAC
Rated Operating Voltage220 - 240 VAC 50/60 Hz
Mounting TypeClip-on / DIN rail
Current Rating / Rated Current40 A
Operating Period20000 cycles (mechanical) / AC-1: 15000 cycles (electrical)
Warranty18 Months
ColourWhite
Documents
Documents
x
Download Datasheet
