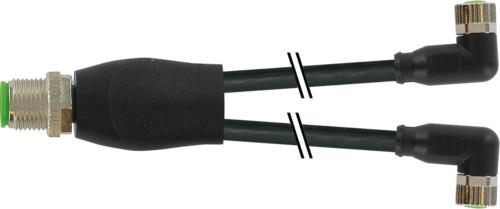

Murr Y-distributor, M12 male 0°/ M8 female 90°, A-coded, 5m

Product Overview

This M12 to M8 Y-distributor connection cable (SKU: 7000-40841-6300500) features one male M12 straight (0°) connector branching to multiple female M8 90° angled connectors, all with A-coding for reliable signal distribution between different connector sizes in space-constrained industrial automation applications. The 5-meter cable with black PUR jacket provides extended-reach connectivity for mixed-connector distribution networks with space-saving angled outputs.

Connector Configuration:

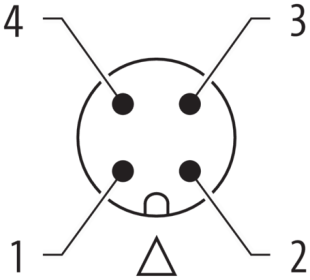

• Input connector: M12, 4-pole, 0° straight, A-coded (male)

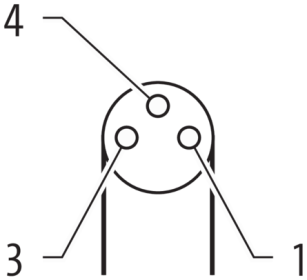

• Output connectors: Multiple M8, 3-pole, 90° angled, A-coded (female)
• Thread: M12 x 1mm (input), M8 x 1mm (outputs), self-securing
• Tightening torque: 0.6 Nm
• Protection: IP67
• Housing: Plastic with chemical/oil resistance

Y-Distributor Design:

• Configuration: One M12 input to multiple M8 90° angled outputs
• Topology: Point-to-multipoint distribution with size conversion and space-saving design
• Signal splitting: Parallel connection distribution to smaller angled connectors
• Network expansion: Connects M12 systems to multiple M8 devices over extended distances
• Installation efficiency: Single M12 cable run to multiple space-efficient M8 connections

Cable Specifications:

• Material: PUR jacket
• Cross-section: 3 x 0.25 mm²
• Color: Black
• Length: 5 meters
• Wire arrangement: Brown, black, blue
• Temperature range: -40°C to +80°C (static), -25°C to +80°C (dynamic)
• Drag chain certified

Electrical Characteristics:

• Operating voltage: 250V AC/DC max.
• Current rating: 4A max. per contact
• Conductor: Stranded copper wire
• Electrical resistance: Optimized for extended distribution applications

Environmental Performance:

• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: Good with PUR jacket
• Chemical and oil resistance: Good (application testing recommended)
• Drag chain compatibility: Certified for dynamic applications

Material & Construction:

• Connector housings: Plastic with chemical and oil resistance
• Jacket material: PUR (Polyurethane) - black color
• Shore hardness: Industrial-grade flexibility
• Material compliance: Lead-free, cadmium-free, CFC-free

Certifications & Compliance:

• UL/CSA certified
• DIN EN 61076-2-101 (M12) and DIN EN 61076-2-104 (M8) compliant
• Material compliance: Lead-free, cadmium-free, CFC-free
• Material group: IEC 60664-1, category I
• Drag chain compatible

Applications

Designed for industrial automation environments requiring signal distribution from one M12 source to multiple M8 devices over extended distances in space-constrained installations. The 90° angled M8 outputs combined with 5-meter length make it ideal for distributed sensor networks, control panels, and applications where standard straight connectors cannot be accommodated. Perfect for connecting M12 control systems to multiple M8 sensors or actuators across larger installations where space-saving angled connections are essential.
