Murr Distribution system, 6xM12, 4-pole, cap with cable

Product Overview

The Murrelektronik MVP12 M12 Distribution System is a 6-port, 4-pole distribution module with plug cap and SCT (Screw Cap Terminal) configuration designed for industrial field distribution applications. This system provides 6×M12 connections with screw plug-in terminals and field-wireable capability for reliable sensor and actuator connectivity in demanding industrial environments.

Key Features

• 6×M12 ports with 4-pole configuration
• Plug cap design with SCT (Screw Cap Terminal) technology
• Field-wireable via screw plug-in terminals
• PNP (Positive-Negative-Positive) configuration
• Plastic flame-retardant housing construction
• IP67 protection when properly connected

Technical Specifications

• Model: MVP12 M12 Distribution System
• Article Number: 27777
• Configuration: 6×M12, 4-pole
• Connection Type: Plug cap with SCT (Screw Cap Terminal)
• Housing Material: Plastic, flame-retardant
• Protection Rating: IP67 (inserted and tightened per EN 60529)
• Temperature Range: -20°C to +80°C

Electrical Characteristics

• Operating Voltage: 24V DC
• Operating Current per Contact: Maximum 4A

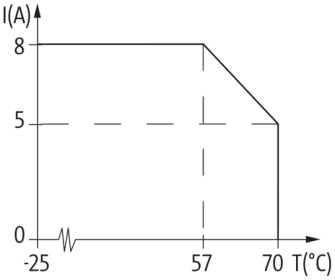

• Total Current: Maximum 2 × 8A
• Signal per Port: 1 signal (31-32 configuration)

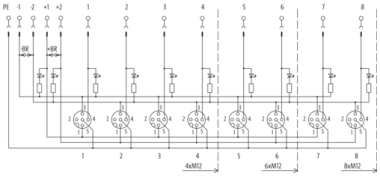

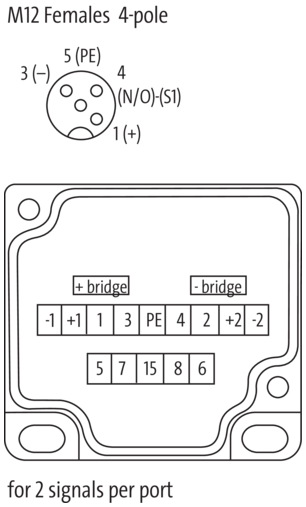

• Pin Configuration: PIN 1 (+), PIN 3 (-), PIN 4 (NO/S1), PIN 5 (Earth)
• LED Indicators: Green (Power), Yellow (S1)

Connection Specifications

• Terminal Type: Screw plug-in terminals
• Wire Capacity: Maximum 1.5mm² (AWG 16)
• Port Locking: Screw thread M12 × 1mm
• Field Wiring: Direct screw terminal connection capability
• Plug Cap: Removable cap for terminal access

Physical Specifications

• Port Count: 6×M12 connections
• Pole Configuration: 4-pole per port
• Housing: Plastic, flame-retardant construction
• Mounting: Field-mountable distribution box design

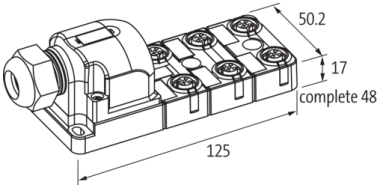

• Dimensions: Extended length for 6-port configuration

Distribution Features

• Multi-Port: 6×M12 connections for extensive sensor/actuator distribution
• Field-Wireable: Screw plug-in terminal system for on-site wiring
• Plug Cap Technology: Enhanced protection and easy access
• Signal Distribution: Single signal capability per port
• Status Monitoring: LED indicators for power and signal status

Installation Specifications

• Mounting: Field-mountable housing design
• Connection: M12 screw-threaded ports with plug cap system
• Wiring: Direct screw terminal field-wireable system
• Sealing: Fully potted construction for durability
• Assembly: Easy separation for assembly and transport

Applications

• Industrial sensor and actuator distribution
• Large-scale field-level signal and power distribution
• Manufacturing automation systems with multiple I/O points
• Process control field connections
• Machine control sensor networks
• Single-signal I/O distribution applications

Screw Cap Terminal Benefits

• Secure Connection: Reliable screw terminal connections
• Field-Wireable: On-site wiring capability without special tools
• Easy Access: Removable plug cap for terminal access
• Standard Wiring: Compatible with standard industrial practices
• Maintenance-Friendly: Easy inspection and rewiring capability

Plug Cap Advantages

• Environmental Protection: Additional sealing protection
• Terminal Access: Easy access to wiring terminals
• Professional Finish: Clean appearance when cap is installed
• Dust Protection: Protects terminals from contamination
• Secure Retention: Reliable cap attachment system

Extended Port Configuration

• Six-Port Design: More connection points for complex applications
• Scalable Solution: Suitable for larger sensor/actuator networks
• Space Efficient: Compact design maximizes connection density
• Modular Approach: Part of comprehensive MVP12 system family
• System Integration: Compatible with other MVP12 components

Standards and Compliance

• Protection Standard: IP67 per EN 60529
• Housing Material: Flame-retardant plastic construction
• Operating Environment: Industrial temperature range
• Quality: Murrelektronik industrial standards
• Reliability: Designed for demanding industrial applications

Benefits

• Provides consistent pluggable solutions from control to field
• Enables easy separation for assembly and transport
• Offers fully potted construction for sealed and resistant operation
• Simplifies field wiring with accessible screw terminals
• Provides reliable single-signal distribution capability
• Supports larger sensor/actuator networks with 6-port configuration

Download existing graphical data for this product:

• Product Specification Sheet
