Murr M12 Connector, female 0°, 3-pole, c/s 0.5 - 1mm²

Product Overview

The Murrelektronik M12 female straight field-wireable connector features innovative IDC (Insulation Displacement Connector) technology optimized for heavy wire applications in industrial sensor and actuator systems requiring fast, reliable field termination with socket configuration. This A-coded connector accommodates 3-pole configurations with heavy wire cross-sections from 0.5 to 1.0mm² and larger cable diameters from 5.5 to 8mm, providing quick and secure socket connections in industrial automation environments where field assembly with heavier gauge wires is critical.

Key Features

• M12 female 0° straight connector with A-coding and 3-pole configuration
• IDC (Insulation Displacement Connector) technology optimized for heavy wire applications
• Heavy wire cross-section compatibility: 0.5 to 1.0mm²
• Large cable diameter range: 5.5 to 8mm
• Razor-style connection blades designed for secure heavy wire contact
• Hand-tightened strain relief requiring minimal force
• IP67 protection rating for harsh industrial environments
• Impact-resistant plastic housing with superior chemical resistance

Technical Specifications

• Article Number: 7000-12631-0000000

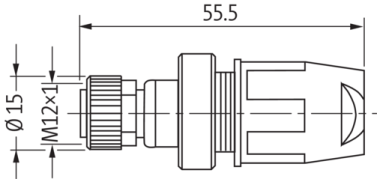

• Connector Type: M12 female 0° straight, A-coded, field-wireable

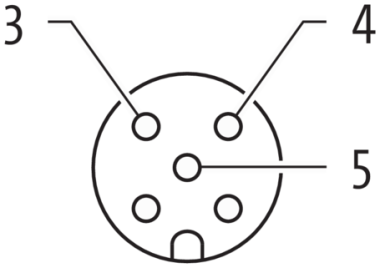

• Pole Configuration: 3-pole
• Connection Method: IDC (Insulation Displacement Connector)
• Wire Cross-Section: 0.5 to 1.0mm²
• Cable Diameter: 5.5 to 8mm
• Operating Voltage: Maximum 250V AC/DC (typical for heavy wire applications)
• Current Rating: Maximum 4A per contact
• Operating Temperature: -25°C to +85°C
• Protection Rating: IP67 when properly assembled
• Housing Material: Impact-resistant plastic with excellent chemical resistance

Applications

• Field installation of sensor and actuator socket connections requiring heavy wire 3-pole signal capacity
• Industrial automation systems with heavy gauge control wiring requiring on-site female assembly
• Power transmission applications where heavier wire sizes are standard with socket requirements
• Maintenance and repair applications requiring quick heavy wire socket replacement
• Control panel connections with heavy wire multi-signal socket requirements
• Applications where traditional screw terminals are unsuitable for heavy wire socket termination
• High-current measurement systems requiring reliable heavy wire field socket connections

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions with heavy wire optimization

Benefits

• IDC technology reduces installation time by over 50% compared to traditional heavy wire socket terminations
• No specialized tools required - hand-tightened strain relief installation
• Razor-style blades ensure reliable electrical contact with heavy wires without stripping
• Minimal force required for assembly - ideal for heavy wire handling in socket applications
• 3-pole socket configuration provides reliable signal transmission with heavier conductors
• Optimized for larger cable diameters commonly used in heavy-duty applications
• Field-wireable design eliminates need for pre-assembled heavy wire socket cordsets
• Extremely good resistance against chemicals, oils, lubricants, and coolants
• Impact-resistant housing withstands demanding industrial environments
• Cost-effective solution for heavy wire socket field termination requirements

Download existing graphical data for this product:

• Data Sheet
