Murr Profinet push pull RJ45, male 90° , 4-pole

Product Overview

Push Pull RJ45 field-wireable connector (SKU: 7000-74061-0000000) with 45-degree angled configuration and IDC technology. This 4-pole shielded connector provides CAT5 performance for PROFINET applications in space-constrained installations requiring secure connections.

Key Features

• Push-pull RJ45 male 45-degree angled connector with IDC termination
• 4-pole CAT5 performance for PROFINET applications
• Tool-free field installation - no crimping required
• 45-degree angle for space-saving installations
• Push-pull locking mechanism for secure connections
• Shielded construction for EMI protection
• Wire range: 0.14-0.34mm² (AWG24-AWG22)
• Cable diameter: 6.5-9.5mm
• IP20 protection rating

Technical Specifications

• Connector: RJ45PP (Push-Pull) male 45-degree angled
• Performance: Category 5 (CAT5)
• Termination: IDC (Insulation Displacement Connection)
• Shielding: Integrated shield connection
• Locking: Push-pull mechanism for vibration resistance

Applications

• Space-constrained PROFINET installations
• Industrial Ethernet field termination with angle requirements
• Tight enclosure applications requiring 45-degree cable exit
• Factory automation networks with space limitations
• Process control systems in confined spaces

Compliance & Standards

• Category 5 Ethernet standards
• PROFINET compatible
• CE marking, RoHS compliant
• Industrial grade construction

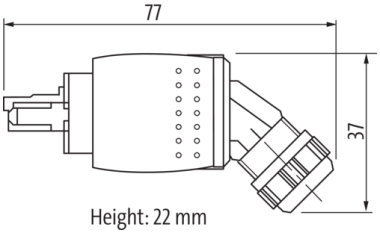

Download existing graphical data for this product:

Product Datasheet
