Description
xProduct Overview
M12 male connector with cable (SKU: 7030-12041-1260500) designed for industrial automation applications conforming to AIDA standards. This 5-pole A-coded connector features M12 male straight design with 5 meters of yellow PUR cable with open-ended wires for flexible sensor and actuator connections in demanding industrial environments.
Key Features
- M12 male straight (0°) A-coded connector for standardized connections
- 5-meter yellow PUR cable with UL/CSA certification and drag chain capability
- 5-pole configuration with 5 × 0.34mm² conductors
- AIDA conform design meeting industry construction standards
- Open-ended wires for custom terminations and flexible installations
- Plastic housing with good resistance against chemicals and oils
- Gold-plated contacts ensuring optimum conductivity
- Vibration-resistant with union nut and vibration protection
Technical Specifications
- Connector: M12 male straight (0°) A-coded, 5-pole
- Cable Length: 5 meters
- Wire Configuration: 5 × 0.34mm² stranded copper
- Cable Type: PUR (Polyurethane) jacket, yellow color
- Termination: Open-ended wires
- Housing Material: Plastic construction with chemical resistance
- Drag Chain Capability: Suitable for dynamic applications
- Protection Rating: IP67 (when properly mated)
Applications
- Industrial automation sensor and actuator connections
- Construction industry applications meeting MgU-I-B09-41 requirements
- Dynamic applications requiring drag chain compatibility
- Equipment connections requiring AIDA standard compliance
- Control system installations with custom wire terminations
- Process control applications in chemical-resistant environments
Compliance & Standards
- AIDA conform design for construction industry compliance
- UL/CSA certified construction
- A-coding compliant with IEC 61076-2-101 standards
- Chemical and oil resistant construction
- Drag chain certified for dynamic applications
- 100% tested during manufacturing process
Download existing graphical data for this product:
Specifications
x| IP Rating / Detailed | IP65 |
| Tariff | 85444290 |
| GTIN | 4048880000000.0 |
| ETIM | EC001855 |
| Temperature: Operating Min | -30.0°C |
| Temperature: Operating Max | 85.0°C |
| Stripping Length (mm) | 20.0mm |
| Thread | M12 |
| Tightening Torque | 0 |
| Nominal Voltage | 300.0 |
| Mounting Type | inserted |
| Current load capacity | to |
| Current Rating / Rated Current | 4.0 |
| Packaging size / unit | 1 |
| Material: Housing / Grip | group |
| Material: Jacket / Cover Nut | PUR |
| Material: Wire Insulation | PP |
| Cable Type | 3.0 |
| Communication | M12 |
| Stranding | 1 |

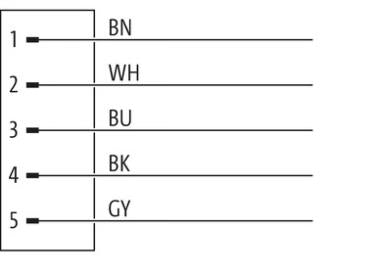

| Wire arrangement | brown |
| Bending radius (fixed) | 5.0 |
| Bending radius (dynamic) | 10.0 |
| Voltage Frequency Range | withstand |
| Operating Voltage Max | 125.0 |
