Murr M12 male 0°/M8 female 0°, straight, 4-pole, 1m

Product Overview

This M12 to M8 connection cable (SKU: 7000-40581-6310100) features male M12 straight (0°) connector and female M8 straight (0°) connector, both with A-coding for reliable signal transmission between different connector sizes in industrial automation applications. The 1-meter cable with black PUR jacket provides compact connectivity for mixed-connector installations with drag chain certification.

Connector Configuration:

• Male connector: M12, 4-pole, 0° straight, A-coded

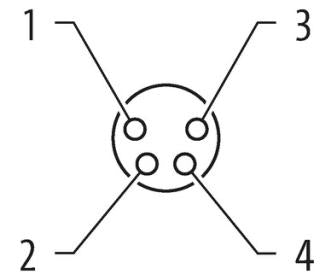

• Female connector: M8, 4-pole, 0° straight, A-coded
• Thread: M12 x 1mm (male), M8 x 1mm (female), self-securing
• Tightening torque: 0.6 Nm
• Protection: IP67
• Housing: Plastic with chemical/oil resistance

Cable Specifications:

• Material: PUR jacket
• Cross-section: 4 x 0.25 mm²
• Color: Black
• Length: 1 meter

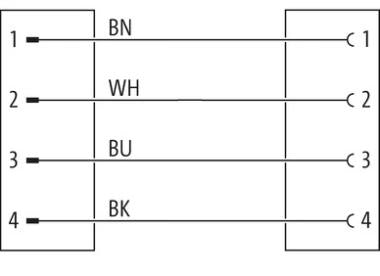

• Wire arrangement: Brown, black, blue, white
• Temperature range: -25°C to +85°C
• Drag chain certified

Electrical Characteristics:

• Operating voltage: 250V AC/DC max.
• Current rating: 4A max. per contact
• Conductor: Stranded copper wire
• Electrical resistance: Optimized for short cable runs

Environmental Performance:

• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: Good with PUR jacket
• Chemical and oil resistance: Good (application testing recommended)
• Drag chain compatibility: Certified for dynamic applications

Material & Construction:

• Connector housings: Plastic with chemical and oil resistance
• Jacket material: PUR (Polyurethane) - black color
• Shore hardness: Industrial-grade flexibility
• Material compliance: Lead-free, cadmium-free, CFC-free

Certifications & Compliance:

• UL/CSA certified
• DIN EN 61076-2-101 (M12) and DIN EN 61076-2-104 (M8) compliant
• Material compliance: Lead-free, cadmium-free, CFC-free
• Material group: IEC 60664-1, category I
• Drag chain compatible

Applications

Designed for compact industrial automation environments requiring short connections between M12 and M8 systems with dynamic movement capability. Ideal for close-proximity interfacing between different sensor/actuator sizes, control panel connections, and applications where M12 control systems need to connect to nearby M8 sensors or devices in moving machinery with space constraints.

Download existing graphical data for this product:

Product Datasheet
