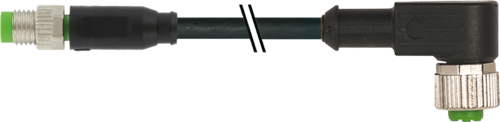

Murr M8 male 0°/ M12 female 90°, A-code, 3-pole, black, 2m

Product Overview

M8 to M12 sensor-actuator connection cable (SKU: 7000-88261-6100200) designed for extending sensor and actuator connections in space-constrained industrial automation systems. This 3-pole A-coded connection cable features a unique 90° angled M12 female connector with gold-plated contacts and PVC construction for reliable signal transmission in standard industrial environments.

Key Features

• M8 male straight (0°) to M12 female 90° A-coded configuration
• 3-pole connection with gold-plated copper alloy contacts
• 2m black PVC cable for cost-effective industrial applications
• UL/CSA certified (cURus) construction
• Zinc die-casting housing with nickel-plated coating
• 90° angled female connector for space-saving installations
• Vibration protection through union nut design
• IP65/IP67/IP68/IP66K protection ratings when properly mated

Technical Specifications

• Connector 1: M8 male straight (0°) A-coded, M8x1 thread, SW9

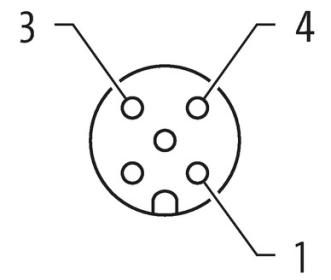

• Connector 2: M12 female 90° A-coded, M12x1 thread, SW13
• Pole Count: 3-pole
• Cable Length: 2m
• Operating Voltage: 50V AC max, 60V DC max
• Current Rating: 4A max per contact
• Wire Cross-section: 0.25mm² stranded copper (Class 5)
• Cable Type: PVC jacket, black color
• Operating Temperature: -30°C to +85°C
• Protection Rating: IP65/IP67/IP68/IP66K

Applications

• Sensor signal extension in space-constrained installations
• Actuator connections where 90° cable routing is required
• Industrial machinery with limited clearance around M12 connections
• Control panel installations requiring right-angle connections
• Process control applications with space limitations
• Factory automation in confined spaces
• Equipment interfacing where straight connections are not feasible

Compliance & Standards

• UL/CSA certified (cURus) construction
• DIN EN 61076-2-101 (M12) and DIN EN 61076-2-114 (M8) compliant
• Chemical, oil, and gasoline resistant
• UV resistant per DIN EN ISO 4892-2 A
• Flame resistant per UL 1581 and IEC 60332-2-2
• Lead-free, cadmium-free, CFC-free, silicone-free materials
