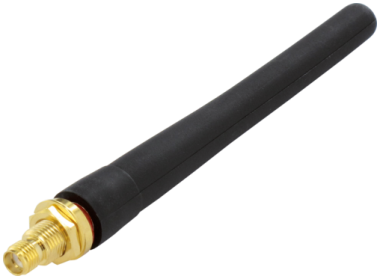

Murr Stub antenna, 2.4 GHZ omnidirectional, 0° SMA

Product Overview

The Murrelektronik 2.4 GHz Omnidirectional Antenna is a compact stub antenna designed for wireless industrial automation applications. This antenna operates in the 2.4 GHz frequency band with 2.5 dBi gain and features a 0° SMA connection for reliable wireless communication in industrial I/O systems.

Key Features

• 2.4 GHz frequency band operation
• Omnidirectional radiation pattern for 360° coverage
• 2.5 dBi gain for enhanced signal strength
• SMA connection with 0° orientation
• Compact stub antenna design
• Industrial-grade construction for automation applications

Technical Specifications

• Model: 2.4 GHz Omnidirectional Antenna 0° SMA Connection
• Article Number: 57031
• Frequency Band: 2.4 GHz
• Antenna Gain: 2.5 dBi
• Radiation Pattern: Omnidirectional
• Connector Type: SMA connection, 0° orientation

Electrical Characteristics

• Operating Frequency: 2.4 GHz band
• Antenna Gain: 2.5 dBi
• Impedance: Standard 50 Ohm (typical for SMA antennas)
• Polarization: Linear (typical for stub antennas)
• Connector: SMA male with 0° straight orientation

Mechanical Specifications

• Antenna Type: Stub antenna design
• Mounting: SMA connector mounting
• Orientation: 0° straight connection
• Construction: Compact industrial-grade design
• Application Environment: Industrial automation systems

Applications

• Industrial wireless I/O systems
• 2.4 GHz wireless communication networks
• Industrial automation wireless applications
• IoT and M2M communication systems
• Wireless sensor and actuator networks
• Industrial wireless data transmission

Standards and Compliance

• Frequency Standards: 2.4 GHz ISM band compliance
• Connector Standards: Standard SMA connector specification
• Quality Standards: Murrelektronik industrial automation quality
• Industrial Standards: Suitable for industrial automation environments

Benefits

• Omnidirectional pattern provides 360° coverage
• Compact stub design minimizes space requirements
• 2.5 dBi gain enhances signal strength and range
• SMA connector ensures reliable connection
• Industrial-grade construction for robust operation
• Optimized for 2.4 GHz wireless automation applications
