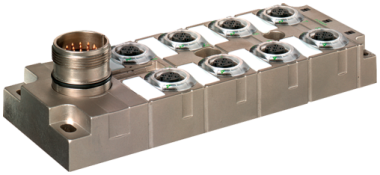

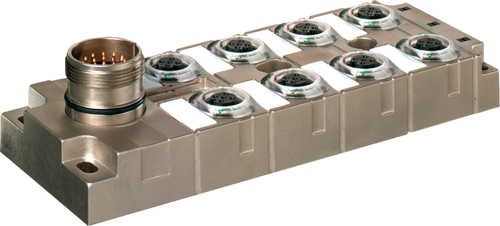

Murr MVP, connector exit frontside, metal, 8xM12, 5-pole

Product Overview
This rugged metal distribution module (SKU 8000-58522-0000000) provides eight M12 5-pole outputs through a robust M23 19-pole front connector. Designed for analog signal distribution (up to 48 V AC/DC), it comes without LEDs and is ideal for harsh industrial environments requiring compact, high-integrity cabling.

Key Features

· Eight M12 5-pole connectors on a single M23 19-pole module
· Heavy-duty zinc die-cast housing with nickel plating for durability
· Supports analog signals up to 48 V AC/DC; no LEDs for diagnostics
· Frontside M23 connector simplifies disconnection and maintenance

Technical Specifications

· Operating Voltage: up to 48 V AC/DC
· Max Current per Contact: 4 A; Total Current: up to 7.5 A
· Ingress Protection: IP65, IP67, IP68 when correctly mated (EN 60529)
· Material: Zinc die-cast housing with matte nickel finish
· Operating Temperature Range: –25 °C to +80 °C

Applications

· Analog I/O distribution in automated and industrial systems
· Field installations demanding modular, robust cabling solutions
· OEM and retrofit setups requiring multiple M12 outputs in one compact unit
· Harsh environments needing high ingress protection and mechanical resilience

Compliance and Standards

· Designed for analog applications up to 48 V AC/DC
· High ingress protection against dust, water, and high-pressure cleaning
· Constructed with RoHS-compliant, nickel-plated metal housing
