Murr MSUD valve plug C-8mm with cable, black, 230VAC/DC, 5m

Product Overview

MSUD valve plug Form C (8mm) with integrated cable (SKU: 7000-80061-6360500) designed for pneumatic and hydraulic valve control applications. This 4-pole connector features PUR cable construction with drag chain compatibility for reliable valve switching in demanding industrial automation systems.

Key Features

• MSUD Form C (8mm) valve plug with 5m PUR cable
• 0-230V AC/DC operating voltage range
• 4-pole configuration without LED indication
• UL/CSA certified with drag chain compatibility
• Black PUR jacket for enhanced durability and chemical resistance
• IP67 protection rating when properly mated
• Silver-plated copper alloy contacts
• Halogen-free, lead-free, cadmium-free construction

Technical Specifications

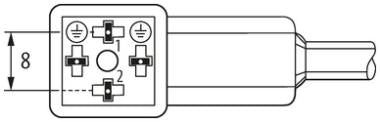

• Connector: MSUD valve plug Form C (8mm)
• Operating Voltage: 0-230V AC/DC
• Current Rating: 6A max per contact
• Pole Count: 4-pole
• Cable Length: 5m (custom lengths available)
• Cable Type: PUR 3x0.75mm² black with drag chain rating

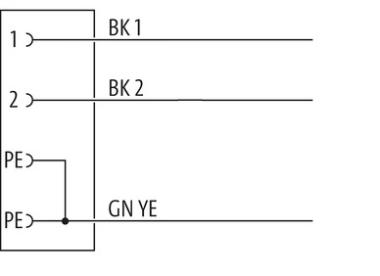

• Wire Arrangement: Black 1, Black 2, Green-Yellow
• Protection Rating: IP67 when inserted and screwed
• Operating Temperature: -25°C to +85°C
• Mounting: Inserted and screwed with M2.5 thread

Applications

• Pneumatic and hydraulic valve control systems
• Industrial automation requiring drag chain compatibility
• Machine control applications with high voltage requirements
• Process automation valve interfaces
• Applications requiring chemical and oil resistance
• Dynamic applications with frequent cable movement

Compliance & Standards

• UL/CSA certified construction
• IP67 environmental protection
• Halogen-free and environmentally friendly materials
• Chemical, oil, and UV resistant
• Flame resistant per IEC 60332-2-2

Download existing graphical data for this product:

Product Datasheet
