Murr MSUD valve plug B-10mm with cable, 5m, 24VAC/DC Part number 7000-10001-6360500

Product Overview

The Murrelektronik MSUD valve plug is a pre-assembled cordset designed for industrial valve and solenoid connectivity applications. This Form B (10mm) valve connector features a 5-meter PUR cable with integrated LED indicator and suppression circuitry, terminated with open-ended wires for direct connection to control systems. Rated for 24V AC/DC applications with drag chain capability, it provides reliable valve control in demanding industrial automation environments.

Key Features

• MSUD Form B (10mm) valve connector with integrated LED indicator
• 5-meter PUR cable with drag chain capability
• 3x0.75mm² conductors for power applications
• UL/CSA certification for North American applications
• Integrated suppression circuitry for valve protection
• Black cable jacket for professional appearance
• Open-ended wire termination for flexible connections

Technical Specifications

• Article Number: 7000-10001-6360500

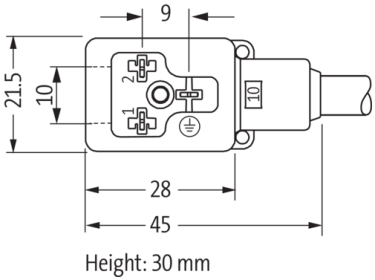

• Connector Type: MSUD Form B (10mm)
• Cable Length: 5 meters
• Conductor Specification: 3x0.75mm² (#18 AWG)
• Voltage Rating: 24V AC ±20% / DC ±25%
• Cable Type: PUR (Polyurethane), black

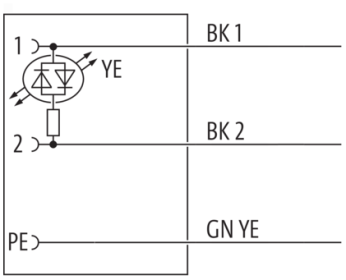

• Features: LED indicator and suppression circuitry

Applications

• Industrial valve and solenoid control
• Pneumatic and hydraulic system automation
• Machine control valve connectivity
• Process control valve applications
• Factory automation valve systems

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection

Benefits

• Pre-assembled construction eliminates field termination
• PUR cable provides superior flexibility for dynamic applications
• Integrated LED provides visual valve status indication
• Suppression circuitry protects against electrical transients
• Drag chain capability enables use in moving applications
• UL/CSA certification ensures North American compliance

Download existing graphical data for this product:

• Data Sheet
