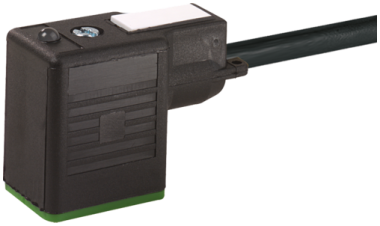

Murr MSUD valve plug B-10mm with cable, 5m, 230VAC/DC

Product Overview

The Murrelektronik MSUD valve plug is a pre-assembled cordset designed for industrial valve and solenoid connectivity applications without integrated electronic components. This Form B (10mm) valve connector features a 5-meter PUR cable terminated with open-ended wires for direct connection to control systems. Rated for 0-230V AC/DC applications with drag chain capability, it provides reliable valve control in demanding industrial automation environments.

Key Features

• MSUD Form B (10mm) valve connector without integrated components
• 5-meter PUR cable with drag chain capability
• 3x0.75mm² conductors for power applications
• UL/CSA certification for North American applications
• Wide voltage range compatibility (0-230V AC/DC)
• Black cable jacket for professional appearance
• Open-ended wire termination for flexible connections

Technical Specifications

• Article Number: 7000-10061-6360500

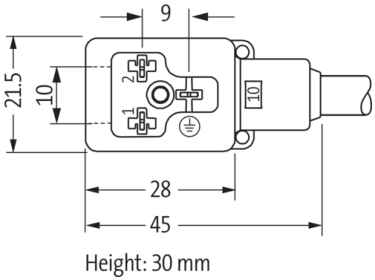

• Connector Type: MSUD Form B (10mm)
• Cable Length: 5 meters
• Conductor Specification: 3x0.75mm² (#18 AWG)
• Voltage Rating: 0-230V AC/DC
• Cable Type: PUR (Polyurethane), black
• Features: Without components (no LED or suppression)

Applications

• Industrial valve and solenoid control without LED indication
• Pneumatic and hydraulic system automation
• Custom valve control applications requiring external components
• Process control valve applications
• Factory automation valve systems requiring flexible control

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection

Benefits

• Pre-assembled construction eliminates field termination
• PUR cable provides superior flexibility for dynamic applications
• No integrated components allows for custom control circuit design
• Wide voltage range supports various valve types
• Drag chain capability enables use in moving applications
• UL/CSA certification ensures North American compliance

Download existing graphical data for this product:

• Data Sheet
