Product Overview

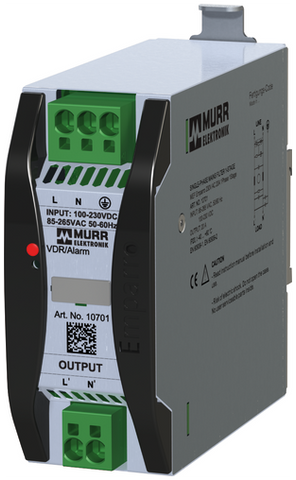

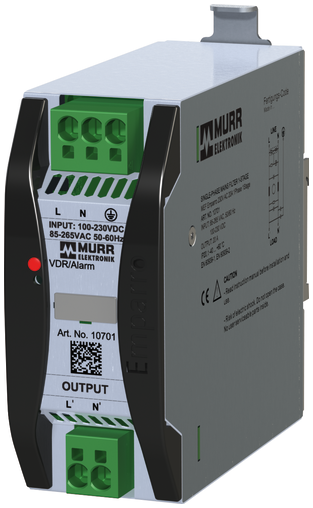

The Murrelektronik EMPARRO MEF-1-1 is a single-phase, single-stage EMC filter designed for control cabinet installations. This filter provides electromagnetic compatibility protection with integrated surge protection, featuring 20A current rating at 230V AC with snap-on DIN rail mounting for easy installation.

Key Features

• Single-phase, single-stage EMC filter configuration
• 20A current rating at 230V AC operation
• Integrated overvoltage (surge) protection
• Snap-on DIN rail mounting system
• Part of the EMPARRO product family for standardized housing
• Bi-directional filtering capability

Technical Specifications

• Model: EMPARRO MEF-1-1
• Article Number: 10701
• Configuration: 1-phase, 1-stage
• Current Rating: 20A
• Voltage Rating: 230V AC
• Mounting: Snap-on DIN rail
• Protection: Integrated surge protection
• Frequency Range: 0.1...30 MHz suppression

Electrical Characteristics

• Input/Output: Single-phase AC
• Current Capacity: 20 amperes
• Voltage: 230V AC
• Filter Stages: Single-stage design
• Interference Suppression: Conducted interference suppression
• Operation: Bi-directional filtering (both directions)
• Protection Features: Overvoltage protection included

EMC Performance

• Frequency Range: 0.1 to 30 MHz interference suppression
• Filter Type: Mains suppression filter
• Interference Types: Symmetrical and asymmetrical interference reduction
• Applications: Suitable for electronically controlled single-phase devices
• Performance: Attenuation curves available on request

Installation Specifications

• Mounting Type: Snap-on DIN rail mounting
• Housing: EMPARRO family standardized housing design
• Connection: Optimal with short connection wires
• Earth Connection: Recommendation: PE connection < 10 cm
• Wire Requirements: Largest possible diameter for optimal performance

Applications

• Control cabinet EMC protection
• Single-phase electronic equipment interference suppression
• Mains and control cable interference reduction
• Industrial automation EMC compliance
• Switched-mode power supply interference reduction
• Electronic device protection from mains interference

Design Features

• Product Family: Part of EMPARRO series for consistent design
• Space Efficiency: Standardized housing saves cabinet space
• Installation: Easy snap-on mounting system
• Protection Level: Integrated surge protection
• Reliability: Industrial-grade EMC filtering solution

Standards and Compliance

• EMC Standards: Designed for electromagnetic compatibility requirements
• Installation Environment: Control cabinet electronics
• Quality: Murrelektronik industrial standards
• Performance: Professional EMC filtering capabilities

Benefits

• Reduces interference emissions from connected equipment
• Improves interference immunity of protected circuits
• Increases process reliability and machine availability
• Prevents electromagnetic interference in machines and systems
• Provides comprehensive EMC protection solution
