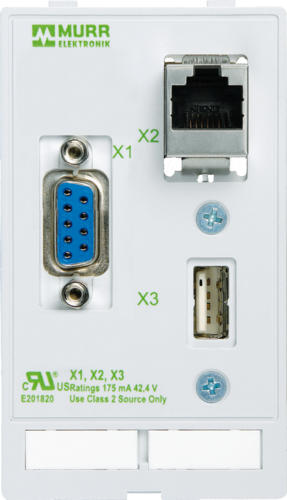

Murr Modlink Data insert, RJ45 + USB2.0 + SUB-D9

Product Overview

The MODLINK MSDD DATA INSERT provides comprehensive connectivity between control cabinet internal systems and external field devices through triple interface technology. This panel mount insert features 1× SUB-D9 female/solder connector, 1× RJ45 8-pole metal CAT5e connector, and 1× USB-A female/female connector, keeping the industrial environment out of the control cabinet while allowing full internal electrical access.

Key Features

• CAT5e compliant RJ45 8-pole metal connector
• SUB-D9 female/solder configuration
• USB-A female/female connector
• IP65 protection rating for industrial environments
• Shielding plates for added protection
• Metal construction with industrial-grade materials
• Triple interface design for versatile connectivity

Technical Specifications

• Series: MODLINK MSDD Front Panel Interfaces
• Category: Data Insert
• Article Number: 4000-68000-1460000
• Connector Type: Triple interface insert
• Connector A: SUB-D9 female/solder
• Connector B: RJ45 8-pole metal, CAT5e
• Connector C: USB-A female/female
• Configuration: Panel mount insert

Transmission Characteristics

• Category: CAT5e Class D performance up to 100 MHz
• Frequency Range: Up to 100 MHz
• Data Rate: Supports Fast Ethernet, USB 2.0, and serial communication
• RJ45 Positions: 8-way connectivity
• SUB-D9 Positions: 9-way serial interface
• USB Standard: USB-A connector compatibility
• Standards Compliance: EN 50173-1 specifications

Installation Details

• Panel Mounting: On panel installation at 32mm depth
• Dimensions: H×W×D: 88×51×21 mm (estimated based on MSDD series)
• Mounting Method: Screw type fastening
• Connection Configuration: Rear and forward mounting connections
• Assembly: Ready-to-install insert for MODLINK MSDD frames

Environmental Specifications

• Electrical Rating: 250 V AC/32 V DC, 3 A capability
• Operating Voltage: Industrial automation voltage ranges
• Protection Rating: IP65 industrial protection
• Material: Metal housing with industrial-grade construction
• Surface Finish: Professional industrial finish

Applications

• Industrial control cabinet to external device connectivity
• Multi-protocol data transmission in automation systems
• Machine control and monitoring applications requiring USB connectivity
• Field device communication interfaces with USB support
• Data acquisition and control system connections
• Manufacturing and process control environments
• Industrial automation requiring Ethernet, USB, and serial communication

Standards and Compliance

• Ethernet Standards: CAT5e, Class D, 100 MHz, EN 50173-1
• USB Standards: USB-A connector specifications
• SUB-D Standards: Standard SUB-D9 connector specifications
• Protection Rating: IP65 environmental protection
• Quality Standards: Murrelektronik industrial quality standards
• Safety Compliance: Industrial automation safety requirements

Compatibility

• Compatible with MODLINK MSDD frame systems
• Standard RJ45 Ethernet cable assemblies
• SUB-D9 serial communication devices
• USB 2.0 and USB 3.0 compatible devices
• Industrial automation and control systems
• CAT5e network infrastructure
• Multi-protocol communication equipment
