Murr Miro TR, Opto-coupler 24VDC, 0.1mA, screw

Product Overview

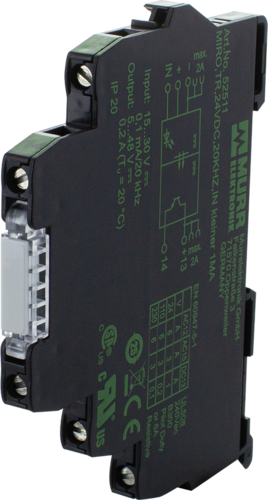

The Murrelektronik MIRO TR 24VDC 20KHZ is a high-frequency transistor-based optocoupler module designed for fast-switching applications requiring ultra-low control current. This specialized module provides DC switching capability up to 0.2A at 48VDC output with exceptionally low control current of less than 1mA at 5VDC, making it ideal for high-frequency applications up to 20kHz. The device features compact 12mm width design with screw terminal connections for applications demanding high-speed optical isolation.

Key Features

• High-frequency operation: up to 20kHz switching capability
• Ultra-low control current: <1mA at 5VDC input
• Fast-switching transistor-based optocoupler technology
• Input range: up to 30VDC maximum
• Output capability: 48VDC, 0.2A switching
• Compact 12mm width design for space efficiency
• Screw terminal connections for secure wiring
• High-speed optical isolation for fast applications

Technical Specifications

• Model: MIRO TR 24VDC 20KHZ Optocoupler Module
• Article Number: 52511
• Input Voltage: 30VDC maximum
• Output Voltage: 48VDC maximum
• Output Current: 0.2A continuous maximum
• Control Current: <1mA (at 5VDC)
• Switching Frequency: Up to 20kHz
• Module Width: 12mm
• Connection Type: Screw terminals

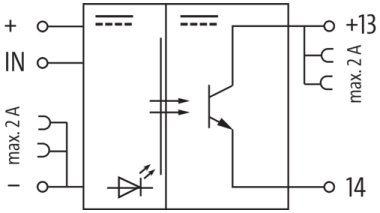

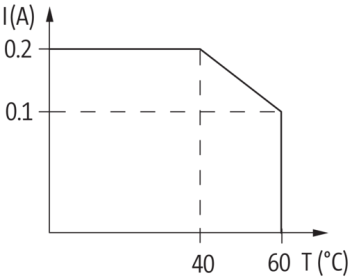

Electrical Characteristics

• Control Input: 30VDC maximum, <1mA control current
• High-Frequency Operation: Up to 20kHz switching frequency
• Load Output: 48VDC maximum, 0.2A switching capability
• Switching Technology: High-speed photo-transistor optocoupler
• Output Type: Fast-switching transistor output
• Low Power Control: Ultra-low current consumption design

Standards and Compliance

• Industrial Standards: Designed for high-frequency industrial applications
• Safety Standards: Galvanic isolation for electrical safety
• Quality Standards: Murrelektronik industrial quality and reliability
• DIN Rail Standards: Standard DIN rail mounting compatibility
• Environmental Standards: Industrial environmental protection ratings

Applications

• High-frequency PWM control systems
• Fast-switching motor control applications
• High-speed digital signal isolation
• Precision timing and control circuits
• Microcontroller high-frequency output isolation
• Fast response industrial automation systems

Installation Features

• Compact Design: 12mm width for efficient space utilization
• DIN Rail Mounting: Standard industrial mounting capability
• Screw Terminals: Secure and reliable wiring connections
• High-Speed Interface: Optimized for fast-switching applications
• Professional Integration: Industrial module format

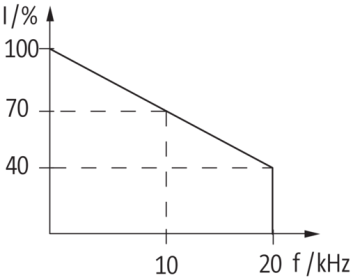

High-Frequency Benefits

• 20kHz Operation: Enables high-frequency switching applications
• Ultra-Low Current: <1mA control minimizes power consumption
• Fast Response: High-speed switching for precision control
• Signal Integrity: Maintains signal quality at high frequencies
• Efficiency: Low power control with high-speed performance

Benefits

• Enables high-frequency switching up to 20kHz with ultra-low control current consumption
• Provides fast optical isolation for precision timing and high-speed control applications
• Features compact 12mm design optimized for high-frequency performance requirements
• Offers reliable galvanic isolation between control and switching circuits at high speeds
• Supports efficient power management with <1mA control current for battery-powered and low-power systems
