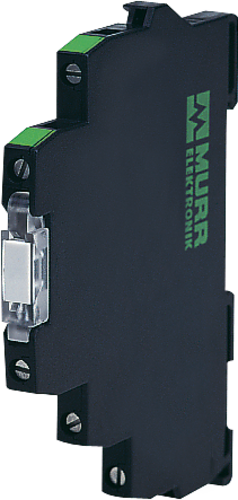

Murr Miro 6.2 Timer off-delay, (max)0.1-10 seconds, screw

Product Overview

The Murrelektronik Miro 6.2 Timer Off-delay is a precision timing relay module providing switch-off delay functionality with an adjustable range from 0.1 to 10 seconds. This compact 6.2mm width module features high-current relay output switching of up to 6A at 250 VAC/DC with EN 60947-1 safe separation compliance for reliable industrial automation applications.

Key Features

• Off-delay timing function: 0.1-10 seconds adjustable range
• High-current relay output: 6A at 250 VAC/DC
• Ultra-compact 6.2mm width for space-efficient installation
• Safe separation compliance (EN 60947-1)
• DIN rail mounting with screw terminal connections
• 24 VDC operation for industrial control systems

Technical Specifications

• Model: Miro 6.2 Timer Off-delay
• Article Number: 52310
• Timing Range: 0.1-10 seconds (switch-off delay)
• Input Voltage: 24 VDC
• Output Rating: 250 VAC/DC maximum, 6A continuous
• Module Width: 6.2mm
• Connection Type: Screw terminals

Electrical Characteristics

• Control Input: 24 VDC operation

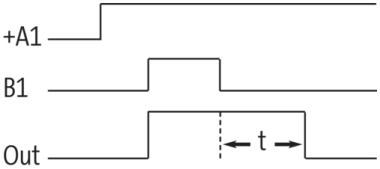

• Timer Function: Off-delay (maintains output after input deactivation)
• Output Type: Single pole relay contact switching
• Timing Accuracy: Industrial-grade precision timing
• Adjustment: Continuous adjustment within 0.1-10 second range

Standards and Compliance

• Safety Standards: EN 60947-1 safe separation compliance
• Industrial Standards: Designed for industrial automation applications
• DIN Rail Standards: Standard DIN rail mounting compatibility
• Quality Standards: Murrelektronik industrial quality and reliability
• Environmental Standards: Industrial environmental protection ratings

Applications

• Industrial process control with delayed shutdown
• Motor run-on delay and cooling applications
• Lighting control with delayed shut-off
• Fan and ventilation delayed stop control
• Safety circuit delayed deactivation
• Equipment delayed shutdown sequences

Installation Features

• Compact Design: 6.2mm width maximizes cabinet space
• DIN Rail Mounting: Standard industrial mounting
• Screw Terminals: Secure wiring connections
• Easy Configuration: Adjustable timing range
• Professional Integration: Standard module format

Benefits

• Provides precise off-delay timing control from 0.1 to 10 seconds for equipment run-on and cooling sequences
• Offers high-current 6A switching capability in ultra-compact 6.2mm width design
• Ensures safe operation with EN 60947-1 compliant electrical separation standards
• Supports reliable industrial automation with DIN rail mounting and secure screw terminals
• Enables flexible timing applications with continuous adjustment range for diverse control requirements

Download existing graphical data for this product:

• Product Specification Sheet
