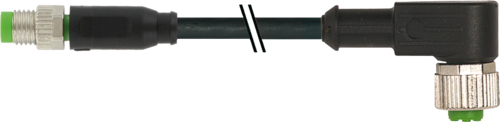

Murr M8 male 0°/ M12 female 90°, 3-pole, black, 3m

Product Overview

M8 to M12 sensor-actuator connection cable (SKU: 7000-88261-6300300) designed for extending sensor and actuator connections in space-constrained industrial automation systems. This 3-pole A-coded connection cable features a unique 90° angled M12 female connector with gold-plated contacts and PUR construction with UL/CSA certification and drag chain compatibility for demanding industrial environments.

Key Features

• M8 male straight (0°) to M12 female 90° A-coded configuration
• 3-pole connection with gold-plated copper alloy contacts
• 3m black PUR cable for enhanced durability and flexibility
• UL/CSA certified with drag chain compatibility
• Zinc die-casting housing with nickel-plated coating
• 90° angled female connector for space-saving installations
• Vibration protection through union nut design
• IP65/IP67/IP68/IP66K protection ratings when properly mated

Technical Specifications

• Connector 1: M8 male straight (0°) A-coded, M8x1 thread, SW9

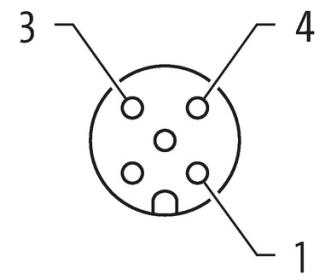

• Connector 2: M12 female 90° A-coded, M12x1 thread, SW13
• Pole Count: 3-pole
• Cable Length: 3m
• Operating Voltage: 50V AC max, 60V DC max
• Current Rating: 4A max per contact
• Wire Cross-section: 0.25mm² stranded copper (Class 6)
• Cable Type: PUR jacket, black color
• Operating Temperature: -30°C to +85°C
• Protection Rating: IP65/IP67/IP68/IP66K

Applications

• Sensor signal extension in space-constrained robotic applications
• Actuator connections requiring 90° cable routing with drag chain movement
• Industrial machinery with limited clearance around M12 connections
• Dynamic applications requiring frequent cable flexing
• Process control installations with space limitations and movement requirements
• Factory automation in confined spaces with drag chain systems
• Equipment interfacing where straight connections are not feasible and flexibility is required

Compliance & Standards

• UL/CSA certified (cURus) construction
• DIN EN 61076-2-101 (M12) and DIN EN 61076-2-114 (M8) compliant
• 10 million bending cycles for drag chain applications
• Chemical, oil, and gasoline resistant
• UV resistant per DIN EN ISO 4892-2 A
• Flame resistant per UL 1581 and IEC 60332-2-2
• Halogen-free, lead-free, cadmium-free construction
