Murr M12 Panel feed through, 8-pole, male/female, A-coded

Product Overview

M12 panel feed-through flange connector (SKU: 7000-48111-0000000) featuring 8-pole A-coded configuration for control cabinet entry applications. This high-quality shielded bulkhead connector provides reliable signal transmission through panel walls, enabling secure connections between internal control cabinet components and external field devices.

Key Features

• M12 panel feed-through design for control cabinet mounting
• A-coded for sensor and actuator signal applications
• 8-pole configuration for multi-signal transmission
• Male-female feed-through configuration
• Shielded construction for EMI/EMC protection
• Front panel mounting with fastening hardware included
• IP67 protection rating when properly installed and mated
• Robust construction for industrial control cabinet applications

Technical Specifications

• Connector Type: M12 x 1 threaded panel feed-through
• Coding: A-coded (8-pole signal)
• Configuration: Male (external side) to Female (internal side)
• Pole Count: 8-pole
• Operating Voltage: 60V AC/DC maximum (30V AC/DC UL listed)
• Rated Surge Voltage: 0.8 kV
• Operating Current: 2A maximum per contact
• Material Group: IEC 60664-1, Category I
• Operating Temperature: -25°C to +85°C
• Protection Rating: IP67 when properly installed and mated
• Mounting: Front panel mounting

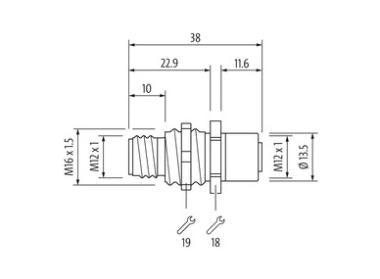

Construction Details

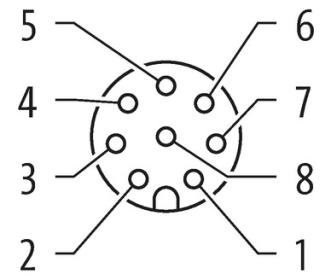

• Contact Configuration: 8 contacts
• Shielding: Integrated shield connection
• Housing Material: High-grade industrial thermoplastic
• Contact Material: Gold-plated brass contacts
• Sealing: O-ring seals for environmental protection
• Locking: Screw thread (M12×1 mm) recommended torque 0.6 Nm
• Panel Cutout: Standard M12 panel mounting hole

Applications Ideal for control cabinet and enclosure signal feed-through applications:

• Control cabinet entry systems for sensor and actuator connections
• Multi-channel signal transmission through panel walls
• Industrial automation control panel interfaces
• Machine control cabinet connections
• Process control system panel feed-throughs
• Factory automation signal distribution through enclosures
• Equipment housing signal pass-through connections

Installation

• Front panel mounting configuration
• Requires standard M12 panel cutout
• Fastening hardware included
• Simple installation with secure environmental sealing

Compliance & Standards

• Industrial grade construction for control cabinet applications
• CE conformity marking
• RoHS compliant
• IEC 60664-1 Category I material group
• DIN EN 61076-2-101 (M12) standards compliance
• Environmental protection suitable for industrial enclosures

Download existing graphical data for this product:

Product Datasheet
