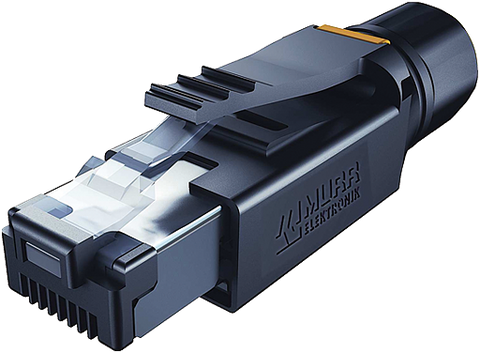

Murr Connector RJ45 male 0°, 4-pole, shielded, ethernet

Product Overview

RJ45 Professional field-wireable connector (SKU: 7000-74001-0000000) featuring male straight configuration with IDC (Insulation Displacement Connection) technology. This high-quality shielded connector enables on-site termination of Ethernet cables without special tools, providing reliable CAT5 performance for industrial networking applications.

Key Features

• RJ45 male connector (0° straight) with professional-grade construction
• IDC (Insulation Displacement Connection) technology for tool-free installation
• 4-pole configuration for Ethernet CAT5 applications
• Shielded construction for EMI/EMC protection
• Field-wireable design for on-site installation and repairs
• Professional-grade housing for industrial environments
• IP20 protection rating
• Compatible with standard RJ45 sockets and infrastructure

Technical Specifications

• Connector Type: RJ45 8P4C male straight (0°)
• Pole Count: 4-pole
• Termination Method: IDC (Insulation Displacement Connection)
• Wire Compatibility: 0.14 - 0.34mm² (AWG24 - AWG22)
• Cable Diameter: 4.5 - 9.0mm
• Shielding: Shielded construction with shield connection
• Performance: Category 5 (CAT5) Ethernet
• Operating Voltage: As per Ethernet standards
• Protection Rating: IP20
• Operating Temperature: Standard industrial temperature range

Installation Features

• Tool-free IDC termination - no crimping tools required
• Field-wireable for on-site installation and maintenance
• Quick and reliable wire connection
• Visual wire insertion confirmation
• Professional strain relief design
• Robust housing for industrial applications

Applications Ideal for field installation and maintenance of Ethernet connections:

• Industrial Ethernet network installations
• On-site cable termination and repairs
• Factory automation network connections
• Process control system networking
• Field device Ethernet connectivity
• Maintenance and retrofit applications
• Temporary or permanent network connections
• Industrial communication system installations

Construction Details

• Housing Material: Professional-grade industrial thermoplastic
• Contact Material: Gold-plated contacts for reliable connection
• Shield Connection: Integrated shield termination
• Strain Relief: Integrated cable strain relief system
• Locking Mechanism: Standard RJ45 locking tab

Compliance & Standards

• Category 5 Ethernet performance standards
• CE conformity marking
• RoHS compliant
• Industrial grade construction
• Suitable for PROFINET and Industrial Ethernet applications

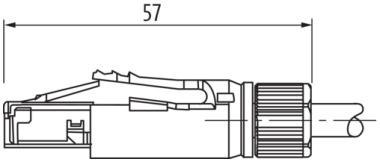

Download existing graphical data for this product:

Product Datasheet
