Murr M8 female 0°, A-code with cable, 3-pole, 5m

Product Overview

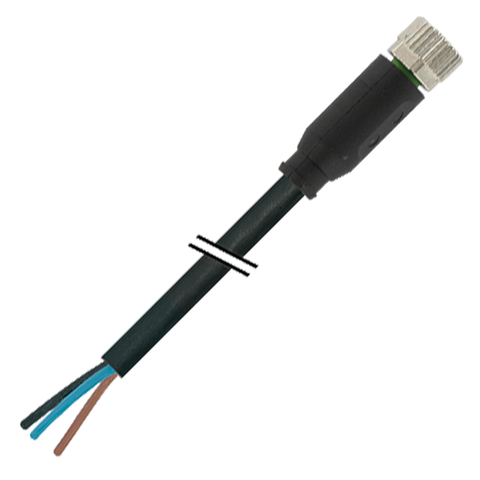

The Murrelektronik M8 female connector cable is a pre-assembled cordset designed for industrial sensor and actuator connectivity applications. This 5-meter cable features a straight M8 female connector with A-coding and 3-pole configuration, terminated with open-ended wires for direct connection to control systems. Constructed with PVC jacket and rated for UL/CSA applications, it provides reliable signal transmission in industrial automation environments with IP65/IP66K/IP67 protection rating.

Key Features

• M8 female straight connector with A-coding (3-pole configuration)
• 5-meter cable length with open-ended wire termination
• PVC jacket with 3x0.25mm² conductors for standard industrial applications
• UL/CSA certification for North American applications
• Die-cast zinc coupling nut for enhanced durability
• IP65/IP66K/IP67 protection rating for industrial environments
• Black jacket color for professional appearance
• Art-No. 7005 - M8 Lite connector with plastic hexagonal screw
• Silicone-free construction

Technical Specifications

• Model: M8 female 0° A-cod. with cable
• Article Number: 7000-08041-6100500
• Connector Type: M8 female, straight (0°)
• Coding: A-coded

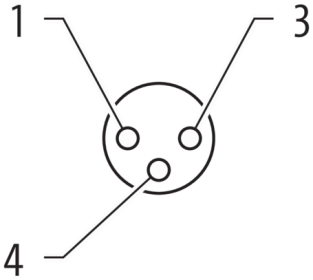

• Pole Configuration: 3-pole
• Cable Length: 5 meters
• Conductor Specification: 3x0.25mm² (#24AWG)

Connection Specifications

• Connector End: M8 female straight connector, A-coded

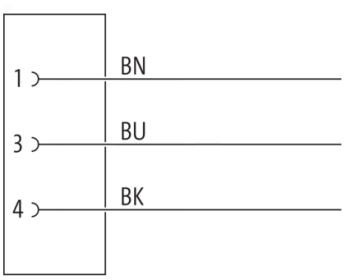

• Wire End: Open-ended flying leads with cable sleeves
• Voltage Rating: 60VAC/60VDC maximum, 300VAC nominal
• Current Rating: 4A maximum
• Protection Rating: IP65/IP66K/IP67
• Conductor Size: 3x0.25mm² (3x#24AWG)
• Cable Jacket: PVC (Polyvinyl Chloride)
• Coupling Nut: Die-cast zinc construction

Applications

• Industrial sensor connectivity and interfacing
• Actuator control and monitoring applications
• Machine control and automation systems
• Process control instrumentation connections
• Factory floor sensor and device wiring
• Industrial communication networks requiring female connections

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Protection Standards: IP65/IP66K/IP67 environmental protection
• Voltage Standards: 60VAC/60VDC rated for signal applications
• Current Standards: 4A maximum current rating
• Temperature Standards: Operating range -20°C to +85°C
• Quality Standards: German engineering and manufacturing

Benefits

• Pre-assembled construction eliminates field termination requirements
• Female connector design enables direct sensor connection
• 5-meter length provides flexibility for standard installations
• A-coding ensures proper mating and prevents mis-connection
• PVC jacket offers good resistance to chemicals and oils
• Die-cast zinc coupling nut provides mechanical strength and durability
• UL/CSA certification ensures compliance with North American standards
• IP67 protection rating enables use in demanding industrial environments

Download existing graphical data for this product:

• Product Specification Sheet
