Murr M12 male 0°/female 0°, straight, black, 4-pole, 5m

Product Overview

The Murrelektronik M12 connection cable is designed for industrial automation signal transmission applications. This pre-assembled cable features M12 male straight connector to M12 female straight connector configuration with A-coding, providing reliable signal connections for sensors, actuators, and other industrial devices. The 5-meter PVC cable with UL/CSA certification offers excellent value for longer-distance connections in industrial automation applications.

Key Features

• M12 male straight to M12 female straight connector configuration
• A-coded connectors for standardized signal applications
• 5-meter PVC cable for cost-effective long-distance connections
• 4x0.34mm² conductor specification for signal transmission
• UL/CSA certification for North American compliance
• Black cable jacket for professional appearance
• IP67 protection rating for harsh environments
• Extended length for equipment separation and signal extension
• Pre-assembled construction for immediate installation
• Chemical and oil resistant plastic housings

Technical Specifications

• Article Number: 7000-40021-6140500

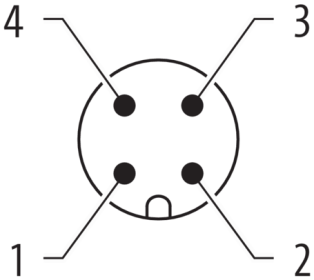

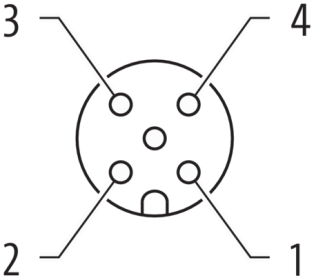

• Connector Type: M12 male straight to M12 female straight
• Coding: A-coded
• Cable Length: 5 meters

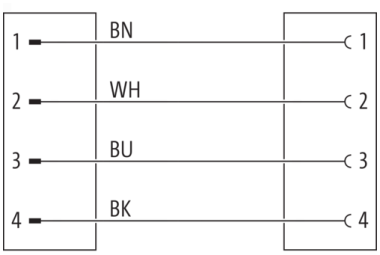

• Conductor Specification: 4x0.34mm² (#22 AWG)
• Cable Type: PVC (Polyvinyl Chloride), black jacket
• Protection Rating: IP67
• Certification: UL/CSA approved
• Application Category: Signal transmission and connectivity
• Housing Material: Plastic with chemical and oil resistance

Applications

• Industrial sensor signal transmission and extension over long distances
• Equipment interconnection requiring 5-meter separation
• Control panel to remote field device signal connectivity
• Machine automation signal distribution across large work areas
• Process control signal routing between distant equipment stations
• Factory automation installations requiring extended reach connections
• Custom automation projects requiring certified long-distance cables
• Industrial equipment signal interface connections with significant spacing requirements

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Protection Standard: IP67 rating for dust and water resistance
• Quality Standards: German engineering and manufacturing
• Safety Standards: Compliant with industrial automation requirements
• Connection Standards: M12 A-coded for standardized compatibility
• Chemical Resistance: Tested for oils and chemicals (application-specific testing recommended)

Benefits

• Pre-assembled construction eliminates field termination requirements
• A-coded configuration ensures proper connection orientation
• PVC cable provides cost-effective solution for stationary applications
• UL/CSA certification ensures North American compliance
• IP67 rating protects against environmental contamination
• 5-meter length provides maximum flexibility in equipment positioning
• Optimized conductor size for efficient signal transmission
• Professional black jacket appearance suitable for visible installations
• Chemical resistant housings ensure durability in industrial environments
• Extended reach capability for challenging installation requirements

Download existing graphical data for this product:

• Data Sheet
