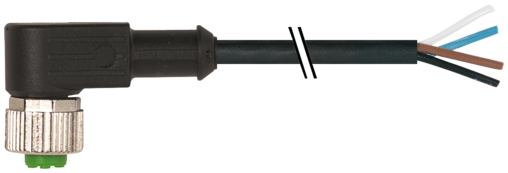

Murr M12 female 90°, A-code with cable, black, 4-pole, 5m

Product Overview

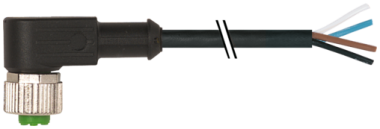

The Murrelektronik M12 female 90° angled connector is a pre-assembled cordset designed for industrial sensor and actuator connectivity applications where space constraints require a right-angle connection. This A-coded signal connector features a 5-meter PVC cable with 4x0.34mm² conductors, terminated with open-ended wires for direct connection to control systems. Rated for signal applications with UL/CSA certification, it provides reliable connectivity in space-constrained industrial automation environments requiring cost-effective 4-pole signal transmission.

Key Features

• M12 female 90° angled connector with A-coding for space-constrained signal applications
• 5-meter PVC cable for standard industrial applications
• 4x0.34mm² conductors optimized for 4-pole signal transmission
• UL/CSA certification for North American applications
• Gold-plated contacts ensuring optimum conductivity
• Black cable jacket for professional appearance
• Open-ended wire termination for flexible connections
• 100% tested during manufacturing process for highest quality and reliability

Technical Specifications

• Article Number: 7000-12341-6140500

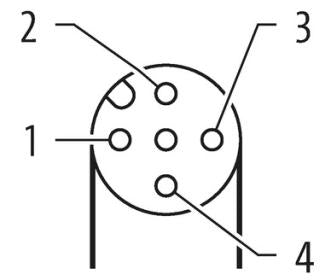

• Connector Type: M12 female 90° angled, A-coded
• Cable Length: 5 meters

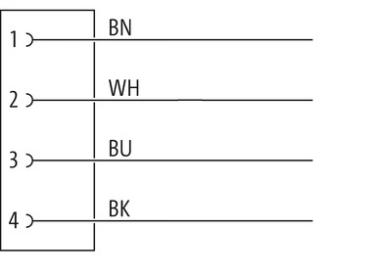

• Conductor Specification: 4x0.34mm² PVC cable
• Voltage Rating: Up to 250V AC/DC
• Current Rating: 4A maximum per contact
• Operating Temperature: -25°C to +80°C
• Cable Type: PVC (Polyvinyl Chloride), black
• Contact Material: Gold-plated for optimum conductivity
• Protection Rating: IP65/IP66K/IP67 when mated

Applications

• Space-constrained industrial sensor and actuator signal connections requiring 4-pole configuration
• Panel-mounted equipment requiring right-angle connectivity with multiple signal lines
• Machine control signal transmission in tight spaces with expanded I/O requirements
• Process control applications with limited clearance and multiple signal needs
• Factory automation sensor networks in compact installations requiring 4-wire connections
• Robotics and automated equipment where space efficiency and multiple signals are critical
• Standard industrial environments requiring cost-effective 4-pole connectivity

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP65/IP66K/IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• 90° angled design saves space and prevents cable interference
• PVC cable provides cost-effective solution for standard applications
• Vibration-resistant design with union nut vibration protection
• Gold-plated contacts ensure long-term reliable connectivity
• 4-pole configuration supports expanded signal requirements
• Resistance to common industrial environments
• Plastic housings with good resistance against chemicals and oils
• Zinc die-cast coupling nut for durability
• Silicone-free construction for sensitive applications
• Optimal combination of space-saving design and multi-pole functionality

Download existing graphical data for this product:

• Data Sheet
