xProduct Overview
Cable drum with 500mm diameter (SKU: 7000-C0505-6140000) featuring 500 meters of 4-conductor PVC cable for large-scale industrial automation applications. This black-jacketed bulk cable solution provides cost-effective custom cable lengths for extensive sensor networks, control systems, and automation installations requiring substantial cable quantities.
Key Features
- 500mm diameter cable drum for maximum cable capacity
- 500-meter PVC cable with 4 × 0.34mm² conductors
- Black jacket for professional industrial appearance
- UL/CSA certified construction for North American markets
- Bulk cable format enables custom length cutting
- Cost-effective PVC construction for budget-conscious projects
- Professional large-capacity cable drum packaging
- Compatible with standard cable cutting and termination tools
Technical Specifications
- Cable Drum Diameter: 500mm
- Cable Length: 500 meters
- Wire Configuration: 4 × 0.34mm² (4 × #22 AWG) stranded copper
- Cable Type: PVC (Polyvinyl Chloride) jacket, black color
- Operating Temperature: -10°C to +60°C (typical PVC range)
- Certifications: UL/CSA approved
- Installation: Static applications recommended
- Materials: Lead-free, cadmium-free construction
Applications
- Large-scale sensor networks and automation systems
- Extensive control panel wiring and interconnections
- Major industrial installations with high cable requirements
- Static wiring applications where flexibility is not critical
- Distribution and infrastructure wiring projects
- Custom cable assemblies for large automation projects
- Factory-wide installations with long cable runs
- Cost-effective solutions for high-volume wiring needs
Compliance & Standards
- UL/CSA certified construction for global applications
- Industrial-grade PVC construction
- RoHS compliant materials
- Professional bulk cable construction standards
- Cost-effective solution for high-volume applications
Download existing graphical data for this product:
Specifications
x| Tariff | 85444995 |
| GTIN | 4048879313599 |
| Flammability | IEC 60332-2-2 / UL 1581 § 1090 / UL 1581 § 1100 FT2 |
| Temperature: Operating / Dynamic | -5°C to 80°C |
| Material: Jacket / Cover Nut | PVC |
| Material: Conductor Wire | Bare stranded copper wire |
| Material: Wire Insulation | PVC |
| Cable Type | 614 - 1 |

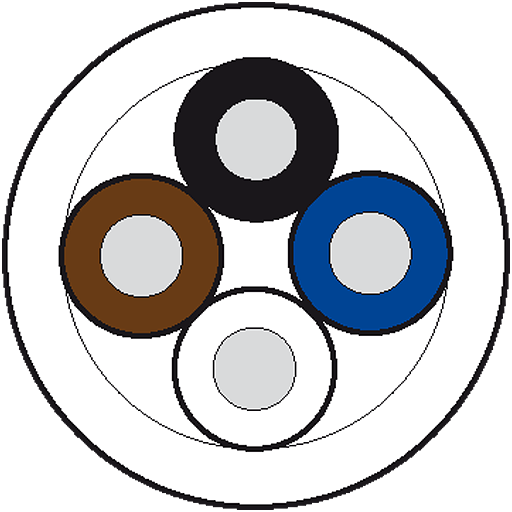

| Stranding | 4 wires twisted |
| Wire arrangement | brown / black / blue / white |
| Bending Radius | 5 x Outer Diameter (fixed) / 10 x Outer Diameter (Dynamic) |
| Part Diameter (mm) | 5mm |
| Packaging Size | 1 pc(s) |
| Cable Weight | 40.7 g/m |
| Conductor Cross-section | 4× 0.34 mm² |
| Nominal Voltage | 300 V (AC / Nominal) |
| Current load capacity | to DIN VDE 0298-4 / 4,8 A |
| Colour | Black |
