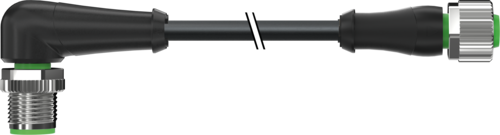

Murr M12 male 90°/female 0° straight, 4-pole, 3m

Product Overview

The Murrelektronik M12 connection cable features M12 male 90° to M12 female straight A-coded connectors with a 3-meter PUR cable. Designed for medium-distance industrial automation signal transmission where angled male connections and flexibility are required, it provides reliable connections for sensors and actuators in space-constrained installations with UL/CSA certification and drag chain capability.

Key Features

• M12 male 90° to M12 female straight A-coded configuration
• 3-meter PUR cable with superior flexibility and drag chain capability
• 4x0.34mm² conductors for reliable signal transmission
• UL/CSA certified with IP67 protection rating
• 90° male connector for space-saving installations
• Pre-assembled for immediate installation

Technical Specifications

• Article Number: 7000-40201-6340300
• Cable Length: 3 meters
• Conductor Specification: 4x0.34mm² (#22 AWG)
• Cable Type: PUR (Polyurethane), black jacket
• Connector Configuration: M12 male 90° to M12 female straight
• Coding: A-coded
• Protection Rating: IP67
• Certification: UL/CSA approved
• Features: Drag chain capable

Applications

• Medium-distance equipment requiring angled male connections with flexibility
• Panel-mounted devices needing 90° male cable routing with dynamic capability
• Space-constrained installations where male connector clearance is limited
• Dynamic automation applications with angled source connections over distances
• Process control applications requiring angled male routing and movement

Benefits

• Pre-assembled construction eliminates field termination
• A-coded configuration ensures proper orientation
• 90° male connector saves installation space at connection point
• PUR cable provides superior flexibility for dynamic applications
• Standard 3-meter length with drag chain capability for versatile moving systems

Download existing graphical data for this product:

• Data Sheet
