Description

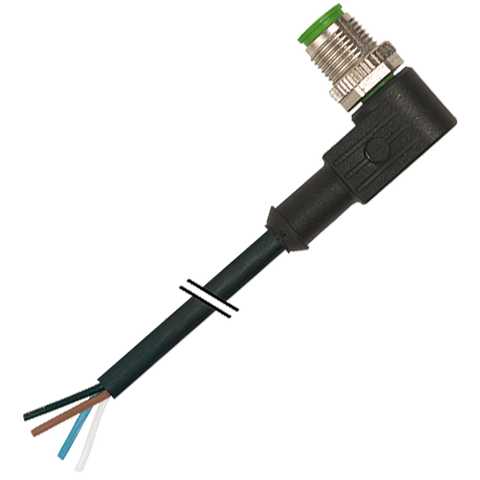

xConnection technology: As a leading cordset manufacturer, Murrelektronik offers a wide variety of jacket colours, head and cable types. The product range includes M8 and M12 sensor cables along with RJ-45 network cables and Mini (7/8”) power cables. With over 20,000 different M12 connection cables, Murrelektronik has what you need. Valve plugs for all common forms (A, B, C and CI) as well as MQ15 and M23 motor cables round out our portfolio.
The signal cable range is with open ended wires, which means the connectors pre-wired on one end thus making it possible to adjust the cable length according to your special requirements. Plastic housings with good resistance against chemicals and oils.Specifications
x| IP Rating / Detailed | IP65 |
| Tariff | 85444290 |
| GTIN | 4048880000000.0 |
| ETIM | EC001855 |
| Temperature: Operating Min | -30.0°C |
| Temperature: Operating Max | 85.0°C |
| Stripping Length (mm) | 20.0mm |
| Thread | M12 |
| Tightening Torque | 0 |
| Nominal Voltage | 300.0 |
| Interface | no |
| Mounting Type | inserted |
| Current load capacity | to |
| Current Rating / Rated Current | 4.0 |
| Packaging size / unit | 1 |
| Material: Housing / Grip | contact |
| Material: Jacket / Cover Nut | PVC |
| Material: Sensing Surface / Contacts | gold |
| Material: Wire Insulation | PVC |
| Material: Screw / connection | Zinc |
| Cable Type | 1.0 |
| Communication | M12 |
| Stranding | 1 |

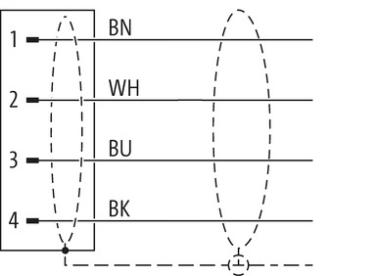

| Wire arrangement | brown |
| Bending radius (fixed) | 5.0 |
| Bending radius (dynamic) | 10.0 |
| Voltage Frequency Range | withstand |
| Operating Voltage Max | 250.0 |
