Murr Receptacle, M12 female, 4-pole, 0.2m

Product Overview

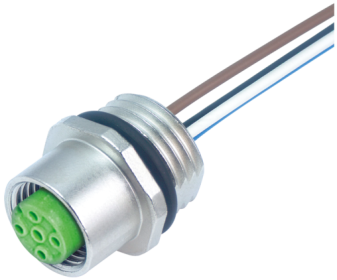

The Murrelektronik M12 female receptacle flange connector features front-mounting bulkhead design with pre-assembled PUR wires for panel and enclosure integration applications. This A-coded 4-pole receptacle includes a 0.2-meter cable with 4x0.34mm² multi-strand conductors and open-ended wires, providing reliable socket connectivity for industrial automation systems requiring secure panel-mount connections with direct wire termination capability.

Key Features

• M12 female receptacle with A-coding and 4-pole configuration
• Front-mounting flange design for panel/bulkhead installation
• Pre-assembled 0.2-meter PUR cable with open-ended wires
• Multi-strand 4x0.34mm² conductor configuration
• Standard color-coded wires for easy identification
• IP67 protection rating when properly mated

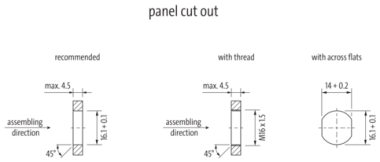

• M12×1mm threading for secure panel mounting
• Robust construction for industrial environments
• Ready-to-install assembly eliminates field wiring
• Compact design for space-efficient panel integration

Technical Specifications

• Article Number: 7000-13541-9710020
• Connector Type: M12 female receptacle, A-coded, front-mounting
• Cable Length: 0.2 meters (20cm)
• Cable Type: PUR (Polyurethane) multi-strand wires
• Conductor Configuration: 4x0.34mm² multi-strand

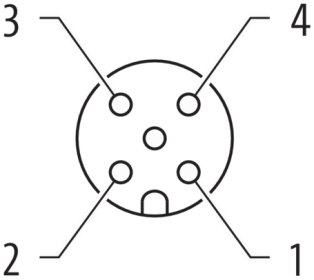

• Pole Configuration: 4-pole

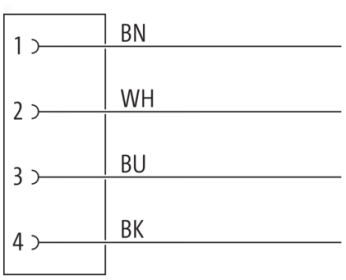

• Wire Colors: Standard industrial color coding
• Operating Voltage: 250V AC/DC maximum (4-pole configuration)
• Maximum Current: 4A per contact
• Operating Temperature: -40°C to +80°C
• Threading: M12×1mm
• Protection Rating: IP67 when mated
• Housing Material: Industrial-grade plastic

Applications

• Control panel and enclosure feedthrough connections
• Machine interface panel mounting applications
• Industrial equipment bulkhead connections
• Sensor and actuator panel integration
• Control cabinet external connections
• Equipment housing interface applications
• Manufacturing system panel connections
• Process control equipment mounting
• Automation system panel integration
• Field device interface connections

Standards and Compliance

• Protection Standards: IP67 rated when mated
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for industrial panel mounting applications
• Environmental Standards: Wide operating temperature range

Benefits

• Front-mounting design enables easy panel installation from outside
• Pre-assembled cable eliminates field termination time and errors
• 4-pole A-coded configuration ensures standard industrial compatibility
• Multi-strand conductors provide flexibility and reliability
• 0.2-meter cable length ideal for panel-to-control connections
• IP67 protection ensures reliable performance in harsh environments
• M12×1mm threading provides secure panel mounting
• Standard color-coded wires simplify installation and maintenance
• Robust PUR cable withstands chemicals, oils, and environmental contaminants
• Ready-to-install assembly reduces labor costs and installation time
• High current capacity (4A per contact) supports demanding applications
• Wide operating temperature range suitable for various environments

Downloads:

• Product Data Sheet
