Murr M12, male 0° / female 0°, D-code, 4-pole, 1m

Product Overview

High-quality M12 connection cable with male and female connectors featuring D-coding for Ethernet applications. This shielded cable assembly provides reliable data transmission in industrial automation environments.

Key Features

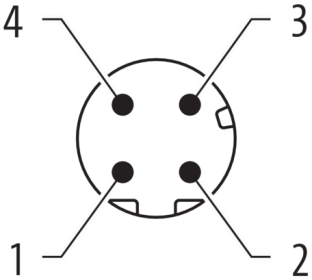

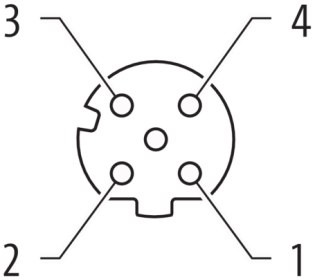

• M12 male connector (0° straight) to M12 female connector (0° straight)
• D-coded for Ethernet data transmission
• Shielded cable construction for EMC protection
• Industrial-grade PVC cable jacket
• UL/CSA certified for North American applications
• Drag chain compatible design
• Protection rating suitable for harsh industrial environments

Technical Specifications

• Connector Type: M12 x 1 threaded
• Coding: D-coded (Ethernet)
• Cable Length: 1.0 meters
• Wire Configuration: 4-conductor shielded
• Wire Gauge: AWG22
• Jacket Material: PVC
• Operating Temperature: -25°C to +80°C
• Protection Rating: IP67 (when mated)
• Certifications: UL/CSA approved

Applications Ideal for connecting Ethernet-enabled devices in industrial automation systems, including:

• Industrial Ethernet networks
• Machine-to-machine communication
• Sensor and actuator connections
• Factory automation systems
• Process control applications

Compliance & Standards

• Meets industrial Ethernet specifications
• RoHS compliant
• UL/CSA certified for safety

Download existing graphical data for this product:

Product Datasheet
