Murr M12, male 0° / female 0°, A-code, 8-pole, grey, 10m

Product Overview

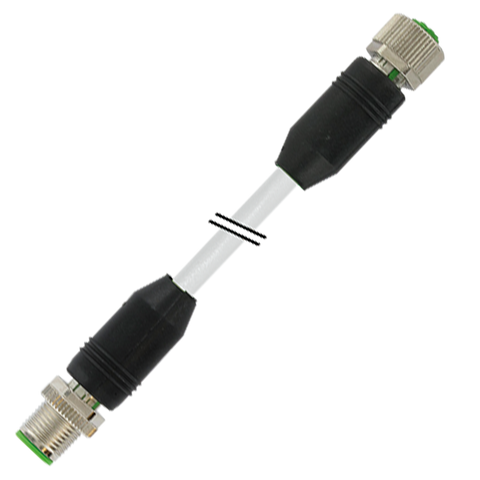

Industrial signal extension cable (SKU: 7000-48001-2951000) featuring M12 male straight connector to M12 female straight connector with A-coding. This high-quality 8-pole cable assembly is designed for sensor and actuator signal transmission in industrial automation applications.

Key Features

• M12 male connector (0° straight) to M12 female connector (0° straight)
• A-coded for sensor and actuator signal applications
• 8-pole configuration for multi-signal transmission
• PUR cable jacket for superior durability and chemical resistance
• UL/CSA certified for North American installations
• IP67 protection rating when connectors are mated
• Gray cable color for signal identification
• Drag chain compatible for dynamic applications

Technical Specifications

• Connector Type: M12 x 1 threaded (male to female)

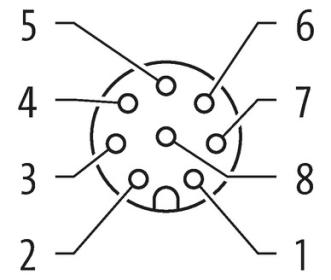

• Coding: A-coded (8-pole signal)
• Cable Length: 10.0 meters
• Wire Configuration: 8 x 0.25mm² multi-conductor cable
• Wire Gauge: 0.25mm² stranded copper conductors
• Cable Type: PUR (Polyurethane) jacketed with drag chain capability
• Operating Voltage: 30V AC/DC maximum (30V AC/DC UL listed)
• Rated Surge Voltage: 0.8 kV
• Operating Current: 2A maximum per contact
• Operating Temperature: -25°C to +85°C (cable dependent)
• Protection Rating: IP65/IP66K/IP67 when properly mated
• Bend Radius (Moving): 10 x outer diameter

Cable Construction

• Wire Count: 8 conductors

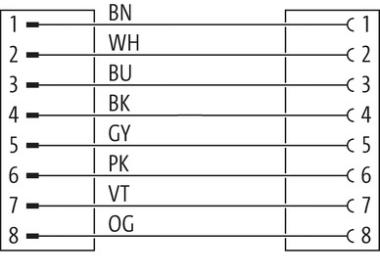

• Wire Colors: Brown, White, Blue, Black, Gray, Pink, Violet, Orange
• Wire Insulation: PP (Polypropylene)
• Outer Diameter: 6.0mm ±5%
• Jacket Material: PUR with UL/CSA approval (AWM-Style 20549/10493)
• C-Track Rating: 5 million cycles
• Cable Weight: 55g/m

Applications Ideal for multi-signal sensor and actuator connections in industrial environments:

• Multi-channel sensor signal transmission
• Industrial automation control systems
• Machine control and monitoring applications
• Process control signal distribution
• Factory automation signal networks
• Robotic system signal connectivity

Compliance & Standards

• UL Listed - Signal cable assemblies for industrial control
• CSA certified for Canadian installations
• cURus approved (AWM-Style 20549/10493)
• CE conformity marking
• RoHS compliant
• IEC 60664-1 Category I material group
• DIN EN 61076-2-101 (M12) standards compliance
