Murr M12, male 0° / female 0°, A-code, 5-pole, 10m

Product Overview

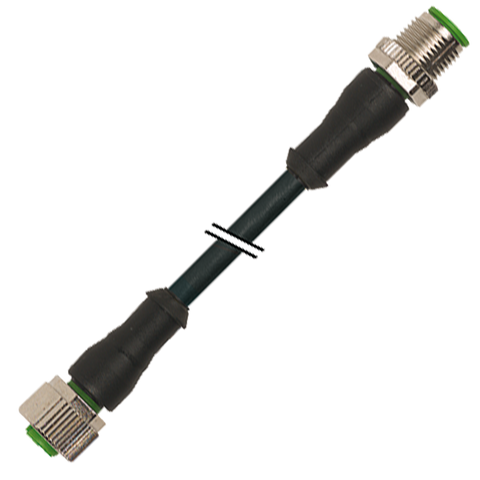

The Murrelektronik M12 connection cable features M12 male straight to M12 female straight A-coded connectors with a 10-meter PVC cable. Designed for 5-pole industrial automation signal transmission over extended distances, it provides reliable connections for sensors and actuators requiring additional signal lines with UL/CSA certification.

Key Features

• M12 male straight to M12 female straight A-coded configuration
• Extended 10-meter PVC cable for long-distance connections
• 5x0.34mm² conductors for multi-signal transmission
• UL/CSA certified with IP67 protection rating
• Chemical and oil resistant plastic housings
• Pre-assembled for immediate installation

Technical Specifications

• Article Number: 7000-40041-6151000
• Cable Length: 10 meters
• Conductor Specification: 5x0.34mm² (#22 AWG)
• Cable Type: PVC (Polyvinyl Chloride), black jacket
• Protection Rating: IP67
• Certification: UL/CSA approved
• Pole Configuration: 5-pole

Applications

• Extended-distance 5-pole sensor and actuator connections
• Large facility automation requiring additional signal lines
• Multi-signal industrial equipment interconnection
• Process control applications with complex signal requirements
• Factory automation systems needing long-reach 5-pole connectivity

Benefits

• Pre-assembled construction eliminates field termination
• A-coded configuration ensures proper orientation
• 5-pole design supports multiple signal requirements
• Extended 10-meter reach for maximum positioning flexibility
• Cost-effective PVC cable for stationary long-distance applications

Download existing graphical data for this product:

• Data Sheet
