Murr M12 male 0° straight/female 90°, robot, 4-pole, 1m

Product Overview

The Murrelektronik M12 connection cable features M12 male straight to M12 female 90° A-coded connectors with a 1-meter robot-grade PUR cable. Designed for robotic applications where angled connections and enhanced flexibility are required, it provides reliable signal transmission for sensors and actuators in space-constrained robotic installations with UL/CSA certification and robot cable specifications.

Key Features

• M12 male straight to M12 female 90° A-coded configuration
• 1-meter robot-grade PUR cable with enhanced flexibility
• 4x0.34mm² conductors for reliable signal transmission
• UL/CSA certified with robot cable and drag chain capability
• 90° female connector for space-saving robotic installations
• Pre-assembled for immediate installation

Technical Specifications

• Article Number: 7000-40121-6540100
• Cable Length: 1 meter
• Conductor Specification: 4x0.34mm² (#22 AWG)
• Cable Type: PUR (Polyurethane), robot-grade, black jacket

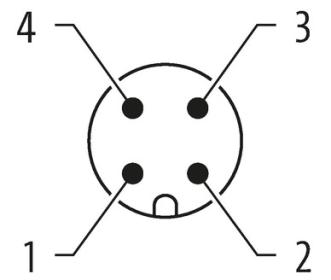

• Connector Configuration: M12 male straight to M12 female 90°
• Coding: A-coded
• Protection Rating: IP67
• Certification: UL/CSA approved
• Features: Robot cable, drag chain capable

Applications

• Robotic system connections requiring angled routing
• Space-constrained robotic installations with dynamic movement
• Automated manufacturing equipment with clearance limitations
• Industrial robotics requiring 90° cable routing
• Dynamic automation applications with continuous movement and space constraints

Benefits

• Pre-assembled construction eliminates field termination
• A-coded configuration ensures proper orientation
• 90° female connector saves installation space in robotic systems
• Robot-grade PUR cable for maximum flexibility and durability
• Optimized for robotic applications with continuous movement and angled routing

Download existing graphical data for this product:

• Data Sheet
