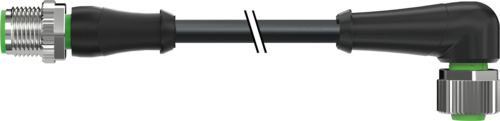

Murr M12 male 0° straight/female 90°, 5-pole, 3m

Product Overview

The Murrelektronik M12 connection cable features M12 male straight to M12 female 90° A-coded connectors with a 3-meter PUR cable. Designed for 5-pole industrial automation signal transmission where angled connections and flexibility are required, it provides reliable connections for sensors and actuators requiring additional signal lines in space-constrained installations with UL/CSA certification and drag chain capability.

Key Features

• M12 male straight to M12 female 90° A-coded configuration
• 3-meter PUR cable with superior flexibility and drag chain capability
• 5x0.34mm² conductors for multi-signal transmission
• UL/CSA certified with IP67 protection rating
• 90° female connector for space-saving installations
• Pre-assembled for immediate installation

Technical Specifications

• Article Number: 7000-40141-6350300
• Cable Length: 3 meters
• Conductor Specification: 5x0.34mm² (#22 AWG)
• Cable Type: PUR (Polyurethane), black jacket
• Connector Configuration: M12 male straight to M12 female 90°
• Coding: A-coded
• Protection Rating: IP67
• Certification: UL/CSA approved
• Features: Drag chain capable

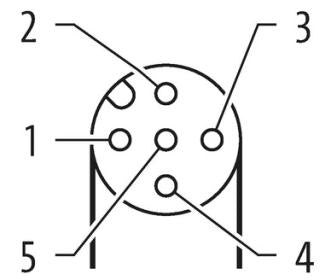

• Pole Configuration: 5-pole

Applications

• Medium-distance 5-pole connections requiring angled routing with flexibility
• Equipment with limited clearance needing dynamic capability and additional signals
• Panel-mounted devices requiring 90° cable routing with movement over distances
• Dynamic automation applications with space constraints and multi-signal requirements
• Process control applications requiring angled routing, movement, and multiple signals

Benefits

• Pre-assembled construction eliminates field termination
• A-coded configuration ensures proper orientation
• 90° female connector saves installation space
• 5-pole design supports multiple signal requirements
• PUR cable with drag chain capability for dynamic applications over moderate distances

Download existing graphical data for this product:

• Data Sheet
