Murr M12 male 0°/M8 female 0°, straight, 3-pole, 3m

Product Overview

This M12 to M8 connection cable (SKU: 7000-40561-6300300) features male M12 straight (0°) connector and female M8 straight (0°) connector, both with A-coding for reliable signal transmission between different connector sizes in industrial automation applications. The 3-meter cable with black PUR jacket provides robust connectivity for mixed-connector installations with drag chain capability.

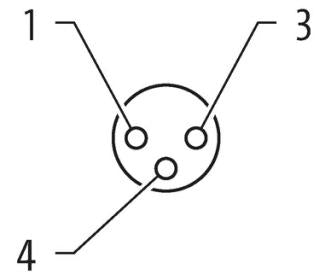

Connector Configuration:

• Male connector: M12, 3-pole, 0° straight, A-coded
• Female connector: M8, 3-pole, 0° straight, A-coded
• Thread: M12 x 1mm (male), M8 x 1mm (female), self-securing
• Tightening torque: 0.6 Nm
• Protection: IP66K, IP67
• Housing: Plastic with chemical/oil resistance

Cable Specifications:

• Material: PUR jacket
• Cross-section: 3 x 0.25 mm²
• Color: Black
• Length: 3 meters

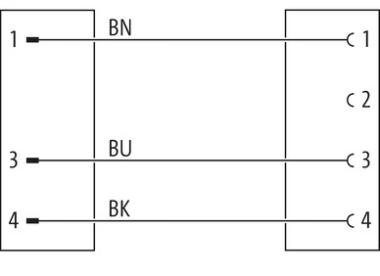

• Wire arrangement: Brown, black, blue
• Temperature range: -40°C to +80°C (static), -25°C to +80°C (dynamic)
• Drag chain certified

Electrical Characteristics:

• Operating voltage: 250V AC/DC max.
• Current rating: 4A max. per contact
• Nominal voltage: 300V AC max.
• Conductor: Stranded copper wire
• Electrical resistance: Optimized for M8 connector requirements

Environmental Performance:

• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: Good with PUR jacket
• Chemical and oil resistance: Good (application testing recommended)
• Drag chain compatibility: Certified for dynamic applications

Material & Construction:

• Connector housings: Plastic with chemical and oil resistance
• Jacket material: PUR (Polyurethane) - black color
• Shore hardness: Industrial-grade flexibility
• Material compliance: Lead-free, cadmium-free, CFC-free

Certifications & Compliance:

• UL/CSA certified
• DIN EN 61076-2-101 (M12/M8) compliant
• Material compliance: Lead-free, cadmium-free, CFC-free
• Drag chain compatible
• Material group: IEC 60664-1, category I

Applications Designed for industrial automation environments requiring connections between M12 and M8 systems with dynamic movement capability. Ideal for interfacing between different sensor/actuator sizes, legacy system integration, and applications where M12 control systems need to connect to M8 sensors or devices in moving machinery, conveyor systems, and automated equipment.

Download existing graphical data for this product:

Product Datasheet
