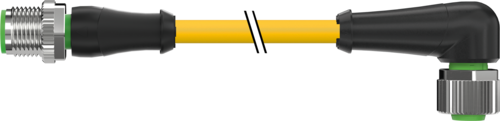

Murr M12, male 0° / female 90°, A-code, 4-pole, yellow, 10m

Product Overview

The Murrelektronik M12 connection cable features M12 male straight to M12 female 90° A-coded connectors with a 10-meter cable. Designed for industrial automation signal transmission where angled connections are required, it provides reliable connections for sensors and actuators in space-constrained installations with UL/CSA certification.

Key Features

• M12 male straight to M12 female 90° A-coded configuration
• 10-meter cable for extended-distance connections
• 4x0.34mm² conductors for reliable signal transmission
• UL/CSA certified with IP67 protection rating
• 90° female connector for space-saving installations
• Pre-assembled for immediate installation

Technical Specifications

• Article Number: 7000-40121-0141000
• Cable Length: 10 meters

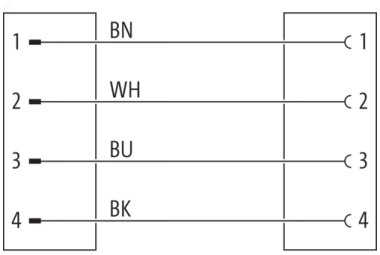

• Conductor Specification: 4x0.34mm² (#22 AWG)

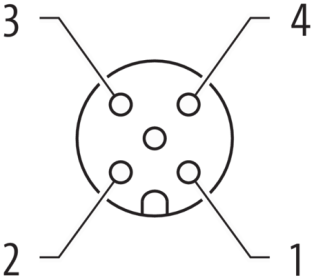

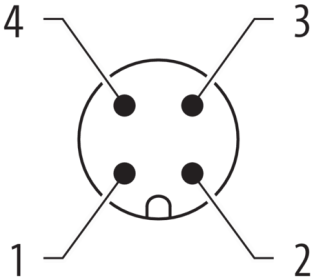

• Connector Configuration: M12 male straight to M12 female 90°
• Coding: A-coded
• Protection Rating: IP67
• Certification: UL/CSA approved

Applications

• Space-constrained installations requiring angled connections
• Equipment with limited clearance for straight connectors
• Panel-mounted devices needing 90° cable routing
• Industrial automation where cable direction changes are needed
• Process control applications with space limitations

Benefits

• Pre-assembled construction eliminates field termination
• A-coded configuration ensures proper orientation
• 90° female connector saves installation space
• Extended 10-meter reach for flexible positioning
• Angled design reduces cable stress and improves routing

Download existing graphical data for this product:

• Data Sheet
