Murr M12 male 0°/female 0°, straight, black, 4-pole, 0.3m

Product Overview

The Murrelektronik M12 connection cable features M12 male straight to M12 female straight A-coded connectors with a 0.3-meter PUR cable. Designed for ultra-short industrial automation signal transmission, it provides reliable connections for sensors and actuators in space-constrained applications with UL/CSA certification and drag chain capability.

Key Features

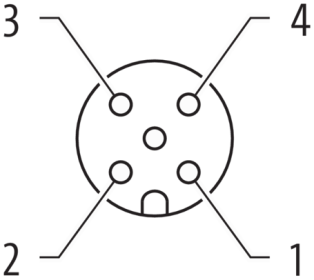

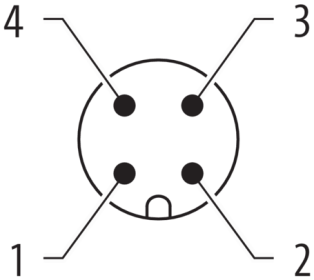

• M12 male straight to M12 female straight A-coded configuration
• Ultra-short 0.3-meter PUR cable with drag chain capability
• 4x0.34mm² conductors for reliable signal transmission
• UL/CSA certified with IP67 protection rating
• Chemical and oil resistant plastic housings
• Pre-assembled for immediate installation

Technical Specifications

• Article Number: 7000-40021-6340030

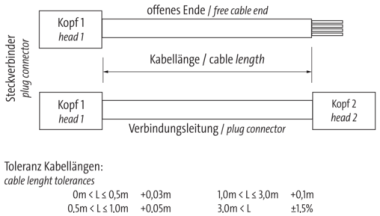

• Cable Length: 0.3 meters
• Conductor Specification: 4x0.34mm² (#22 AWG)
• Cable Type: PUR (Polyurethane), black jacket
• Protection Rating: IP67
• Certification: UL/CSA approved
• Features: Drag chain capable

Applications

• Close-proximity sensor signal transmission
• Compact automation applications
• Equipment interconnection with minimal separation
• Control panel internal connections
• Space-constrained industrial installations

Benefits

• Pre-assembled construction eliminates field termination
• A-coded configuration ensures proper orientation
• PUR cable provides superior flexibility
• Ultra-short length minimizes cable management
• Drag chain capability for dynamic applications

Download existing graphical data for this product:

• Data Sheet
