Murr M12 male 0°/female 0°, robot, black, 4-pole, 0.3m

Product Overview

The Murrelektronik M12 connection cable features M12 male straight to M12 female straight A-coded connectors with a 0.3-meter robot-grade PUR cable. Designed for ultra-short robotic applications, it provides reliable connections for sensors and actuators with UL/CSA certification, robot cable specifications, and drag chain capability.

Key Features

• M12 male straight to M12 female straight A-coded configuration
• Ultra-short 0.3-meter robot-grade PUR cable
• 4x0.34mm² conductors for reliable signal transmission
• UL/CSA certified with robot cable and drag chain capability
• Chemical and oil resistant plastic housings
• Pre-assembled for immediate installation

Technical Specifications

• Article Number: 7000-40021-6540030

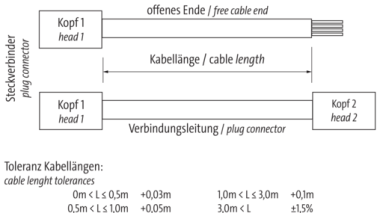

• Cable Length: 0.3 meters
• Conductor Specification: 4x0.34mm² (#22 AWG)
• Cable Type: PUR (Polyurethane), robot-grade, black jacket
• Protection Rating: IP67
• Certification: UL/CSA approved
• Features: Robot cable, drag chain capable

Applications

• Robotic system sensor connections
• Ultra-short distance signal transmission
• Close-proximity equipment interconnection
• Automated manufacturing applications
• Industrial robotics with dynamic movement

Benefits

• Pre-assembled construction eliminates field termination
• A-coded configuration ensures proper orientation
• Robot-grade PUR cable for enhanced flexibility
• Optimized for robotic applications with continuous movement
• Ultra-short length minimizes cable management

Download existing graphical data for this product:

• Data Sheet
