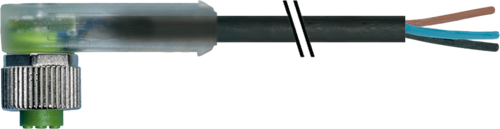

Murr M12 female 90° with cable LED, 3-pole, 6m

Product Overview

The Murrelektronik M12 female 90° angled connector is a pre-assembled cordset with integrated LED status indication for industrial sensor and actuator applications requiring space-saving design with visual feedback and dynamic flexibility. This A-coded connector features a 6-meter PUR cable with 3x0.34mm² conductors in black color, dual LED indicators, and drag chain capability, providing reliable connectivity with visual status monitoring in space-constrained industrial automation environments.

Key Features

• M12 female 90° angled connector with A-coding and LED status indication
• 6-meter PUR cable with drag chain capability for dynamic applications
• 3x0.34mm² conductors for signal transmission
• Dual LED indicators (2× LED PNP) for visual status monitoring
• UL/CSA certification
• Gold-plated contacts for optimum conductivity
• Black cable jacket for professional appearance
• Open-ended wire termination for flexible connections

Technical Specifications

• Article Number: 7000-12381-6330600

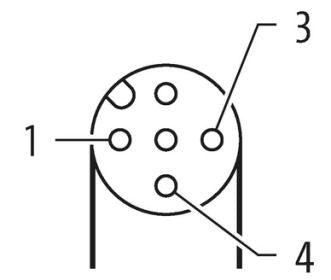

• Connector Type: M12 female 90° angled, A-coded
• Cable Length: 6 meters
• Conductor Specification: 3x0.34mm² PUR cable
• Voltage Rating: Up to 250V AC/DC
• Current Rating: 4A maximum per contact
• Operating Temperature: -40°C to +80°C

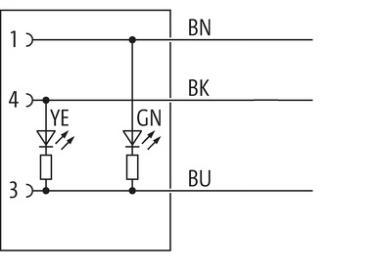

• LED Function: 2× LED (PNP) for status indication
• Cable Type: PUR (Polyurethane), black with drag chain capability
• Protection Rating: IP67 when mated

Applications

• Space-constrained sensor and actuator connections requiring visual status feedback and dynamic flexibility
• Panel-mounted equipment requiring right-angle connectivity with LED monitoring and moving applications
• Machine control signal transmission with visual diagnostic requirements in dynamic environments
• Process control applications with limited clearance, status indication needs, and moving machinery
• Factory automation sensor networks requiring visual connection status with drag chain capability
• Robotics and automated equipment where space efficiency, LED feedback, and cable flexibility are critical

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• 90° angled design saves space and prevents cable interference
• PUR cable provides superior flexibility and chemical resistance for harsh environments
• LED indicators provide immediate visual status feedback for enhanced troubleshooting
• Drag chain capability enables use in moving machinery applications
• 6-meter length suitable for medium-reach industrial applications
• Resistance to oils and cooling lubricants for industrial environments
• Plastic housings with good resistance against chemicals and oils

Download existing graphical data for this product:

• Data Sheet
