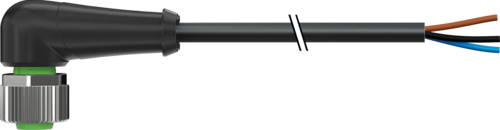

Murr M12 female 90°, A-code with cable, 3-pole, 10m

Product Overview

The Murrelektronik M12 female 90° angled connector is a pre-assembled cordset designed for industrial sensor and actuator connectivity applications where space constraints require a right-angle connection with extended reach. This A-coded signal connector features a 10-meter PVC cable with 3x0.34mm² conductors, terminated with open-ended wires for direct connection to control systems. Rated for signal applications with UL/CSA certification, it provides reliable long-distance connectivity in space-constrained industrial automation environments.

Key Features

• M12 female 90° angled connector with A-coding for space-constrained signal applications
• 10-meter PVC cable for extended reach applications
• 3x0.34mm² conductors optimized for signal transmission over longer distances
• UL/CSA certification for North American applications
• Gold-plated contacts ensuring optimum conductivity
• Black cable jacket for professional appearance
• Open-ended wire termination with cable sleeves for flexible connections
• 100% tested during manufacturing process for highest quality and reliability

Technical Specifications

• Article Number: 7000-12321-6131000

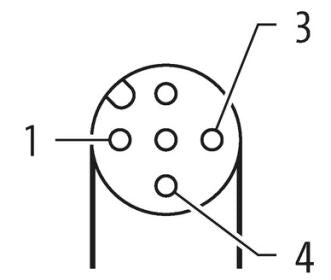

• Connector Type: M12 female 90° angled, A-coded
• Cable Length: 10 meters

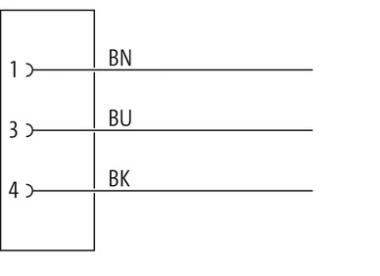

• Conductor Specification: 3x0.34mm² PVC cable
• Voltage Rating: Up to 250V AC/DC
• Current Rating: 4A maximum
• Operating Temperature: -25°C to +80°C
• Cable Type: PVC (Polyvinyl Chloride), black
• Contact Material: Gold-plated for optimum conductivity
• Protection Rating: IP67 when mated

Applications

• Extended reach space-constrained industrial sensor and actuator signal connections
• Panel-mounted equipment requiring right-angle connectivity across larger systems
• Machine control signal transmission in tight spaces with extended cable runs
• Process control applications with limited clearance and long-distance requirements
• Factory automation sensor networks in compact installations requiring extended reach
• Robotics and automated equipment where space efficiency and extended flexibility are critical
• Large-scale conveyor systems and material handling equipment with space constraints

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• 90° angled design saves space and prevents cable interference
• PVC cable provides cost-effective solution for extended applications
• Vibration-resistant design with union nut vibration protection
• Gold-plated contacts ensure long-term reliable connectivity over extended distances
• 10-meter length reduces need for intermediate connections in extensive installations
• Resistance to common industrial environments
• Cable sleeves included for professional installation
• Plastic housings with good resistance against chemicals and oils
• Optimal combination of space-saving design and extended reach capability

Download existing graphical data for this product:

• Data Sheet
