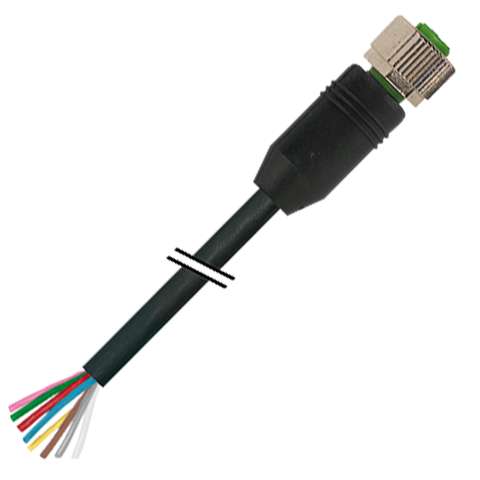

Murr M12 female 0°, A-code with cable, 8-pole, black, 5m

Product Overview

The Murrelektronik M12 female straight connector is a pre-assembled cordset designed for reliable signal transmission in standard industrial automation applications. This A-coded connector features an 8-pole configuration with a 5-meter PVC cable and open-ended wires, providing cost-effective connectivity for industrial environments with good chemical and oil resistance.

Key Features

• M12 female straight connector with A-coding for standardized pin assignment
• 5-meter PVC cable for standard industrial applications
• 8-pole configuration with 0.25mm² conductors for comprehensive signal transmission
• UL/CSA certification for North American markets
• Black cable jacket for professional appearance and easy identification
• Open-ended wire termination for flexible connections
• Zinc die-cast construction with nickel-plated lock for durability
• Cost-effective PVC cable construction for standard environments

Technical Specifications

• Article Number: 7000-17041-6070500

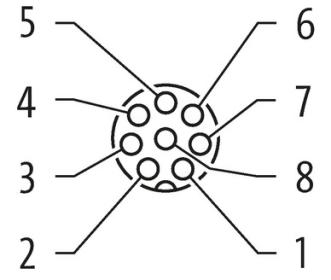

• Connector Type: M12 female straight (0°), A-coded
• Cable Length: 5 meters (16.4 feet)

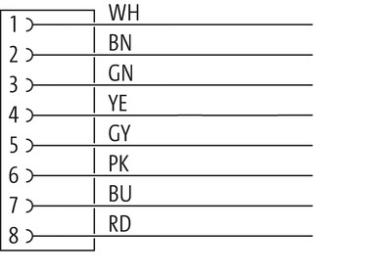

• Conductor Specification: 8x0.25mm² (8x#24 AWG) PVC cable
• Voltage Rating: 30V AC/DC maximum
• Current Rating: Standard industrial signal levels
• Operating Temperature: -25°C to +80°C ambient air temperature
• Cable Type: PVC (Polyvinyl Chloride), black
• Protection Rating: IP65/IP67 when properly installed
• Wire Material: Copper (Cu) conductors

Applications

• Sensor connections requiring reliable 8-pole signal transmission
• Industrial automation systems with standard M12 A-coded interfaces
• Machine control applications in standard industrial environments
• Process control equipment with environmental protection requirements
• Factory automation networks requiring cost-effective connectivity
• Standard industrial environments where PVC cable performance is adequate

Standards and Compliance

• Certification: UL/CSA approved for industrial applications
• Quality Standards: German engineering and manufacturing
• Environmental Classifications: Industrial-grade environmental protection
• Material Standards: CFC-free, cadmium-free, silicone-free, lead-free construction

Benefits

• Pre-assembled construction eliminates field termination errors
• PVC cable construction provides cost-effective solution for standard applications
• Black cable color enhances professional appearance and cable identification
• Copper conductors ensure reliable signal transmission
• Plastic housings with good resistance against chemicals and oils
• Resistance to aggressive media should be individually tested for specific applications
• Environmentally conscious material selection

Downloads

• Product Data Sheet
