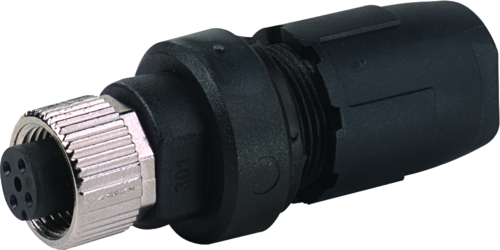

Murr M12 Connector, female 0°, 4-pole, c/s 0.5 - 1mm²

Product Overview

The Murrelektronik M12 female straight field-wireable connector features innovative IDC (Insulation Displacement Connector) technology optimized for heavy wire applications with expanded signal capacity. This A-coded connector accommodates 4-pole configurations with heavy wire cross-sections from 0.5 to 1.0mm² and larger cable diameters from 5.5 to 8mm, providing quick and secure socket connections in industrial automation environments.

Key Features

• M12 female 0° straight connector with A-coding and 4-pole configuration
• IDC technology optimized for heavy wire applications
• Heavy wire cross-section compatibility: 0.5 to 1.0mm²
• Large cable diameter range: 5.5 to 8mm
• Razor-style connection blades for secure heavy wire contact
• Hand-tightened strain relief requiring minimal force
• IP67 protection rating for harsh industrial environments

Technical Specifications

• Article Number: 7000-12641-0000000
• Connector Type: M12 female 0° straight, A-coded, field-wireable

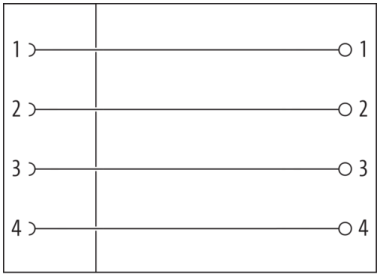

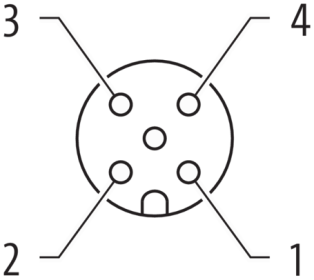

• Pole Configuration: 4-pole
• Connection Method: IDC (Insulation Displacement Connector)
• Wire Cross-Section: 0.5 to 1.0mm²
• Cable Diameter: 5.5 to 8mm
• Operating Voltage: Maximum 250V AC/DC
• Current Rating: Maximum 4A per contact
• Operating Temperature: -25°C to +85°C
• Protection Rating: IP67 when properly assembled

Applications

• Field installation of sensor and actuator socket connections requiring heavy wire 4-pole capacity
• Industrial automation systems with heavy gauge control wiring requiring multi-signal socket assembly
• Power transmission applications where heavier wire sizes are standard with expanded I/O
• Control panel connections with heavy wire multi-signal socket requirements

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions with heavy wire optimization

Benefits

• IDC technology reduces installation time by over 50% compared to traditional terminations
• No specialized tools required - hand-tightened strain relief installation
• Razor-style blades ensure reliable electrical contact with heavy wires without stripping
• 4-pole socket configuration provides expanded signal capacity with heavier conductors
• Field-wireable design eliminates need for pre-assembled heavy wire cordsets
• Extremely good resistance against chemicals, oils, lubricants, and coolants

Download existing graphical data for this product:

• Data Sheet
