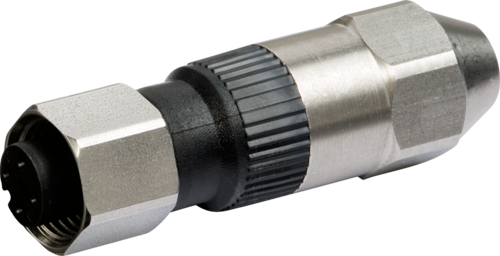

Murr M12 Connector, female 0°, 4-pole, c/s 0.25 - 0.5mm²

Product Overview

M12 female field-wireable connector with V2A stainless steel construction (SKU: 7002-12601-0000000) designed for signal applications in food & beverage and hygienic industrial environments. This straight connector features IDC termination technology accommodating 0.25-0.5mm² conductors for reliable field assembly in demanding sanitary applications.

Key Features

• M12 female straight (0°) connector with V2A stainless steel housing
• IDC (Insulation Displacement Connection) termination technology
• 4-pole configuration for standard signal applications
• Wire capacity: 0.25-0.5mm² per terminal
• Food & beverage industry optimized design
• Corrosion-resistant stainless steel 1.4305 (V2A) construction
• Field-wireable design eliminates specialized crimping tools
• Chemical and cleaning agent resistant materials

Technical Specifications

• Connector Type: M12 female straight (0°), 4-pole
• Housing Material: Stainless steel 1.4305 (V2A)
• Termination Method: IDC (Insulation Displacement Connection)
• Wire Capacity: 0.25-0.5mm² per terminal
• Protection Rating: IP67/IP68 (when properly assembled)
• Operating Temperature: Industrial temperature range
• Contact Material: Gold-plated for corrosion resistance
• Application: Food & beverage, hygienic environments

Applications

• Food & beverage processing equipment connections
• Hygienic industrial automation systems
• Washdown environments requiring stainless steel construction
• Chemical processing applications with corrosive exposure
• Pharmaceutical manufacturing equipment interfaces
• Clean room installations requiring sanitary connectors
• Marine and offshore applications requiring corrosion resistance

Compliance & Standards

• V2A stainless steel construction for hygienic applications
• Food & beverage industry compliant materials
• Corrosion-resistant design for harsh chemical environments
• IDC termination for reliable field installation
• RoHS compliant materials

Download existing graphical data for this product:

Product Datasheet
