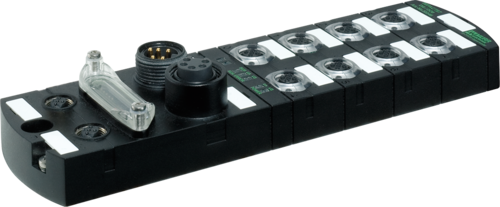

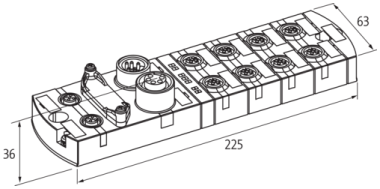

Murr Compact module, ethercat, DI8 DO8, 2A

Product Overview

The Murrelektronik IMPACT67 Compact Module is an EtherCAT-enabled I/O module featuring 8 digital inputs and 8 digital outputs with individual channel diagnostics. This plastic-housed module provides cost-effective fieldbus solutions for basic industrial automation applications with IP67 protection.

Key Features

• EtherCAT protocol with Ethernet 10/100 Mbit/s communication
• 8 digital inputs and 8 digital outputs (DI8/DO8) with PNP configuration
• Individual channel diagnostics via LED indicators
• Port-related shut-off for fault isolation
• IP67 protection with fully potted construction
• Compatible with 3-wire sensors or mechanical switches

Technical Specifications

• Model: IMPACT67 Compact Module, Plastic
• Article Number: 55082
• Protocol: EtherCAT fieldbus communication
• I/O Configuration: 8 digital inputs, 8 digital outputs
• Operating Temperature: -25°C to +55°C
• Protection: IP67 environmental rating

Electrical Characteristics

• Sensor Supply: 24V DC (EN 61131-2), max 200 mA per port
• Switching Current: Max 2 A per output with overload protection
• System Supply: 7/8", 5-pole, 2x max 9 A
• Transfer Rate: Up to 100 Mbit/s with autocrossing

Connection Specifications

• Fieldbus: M12, D-coded for EtherCAT communication
• I/O Ports: M12, A-coded, 5-pole connections
• Addressing: Automatic or Device ID by rotary switch
• Mounting: 2-hole screw mounting, MVK model range compatible

Applications

• Cost-effective EtherCAT fieldbus solutions
• Industrial automation with digital I/O requirements
• Machine control with individual channel monitoring
• Process control systems requiring fault isolation

Benefits

• Individual channel diagnostics prevent system failures
• Failed channels isolated while maintaining system operation
• Cost-effective solution for basic digital applications
• LED indicators provide immediate fault identification
