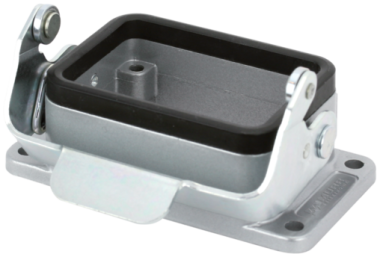

Murr B6 Bulkhead mounted housing, single locking, IP65

Product Overview

Heavy-duty connector housing (SKU: 70MH-GADNL-B000000) designed for industrial automation and electrical distribution applications. This B6 bulkhead-mounted housing provides IP65 environmental protection with single locking lever mechanism, offering secure panel mounting for modular heavy-duty connector systems in demanding industrial environments.

Key Features

• B6 size bulkhead-mounted housing for panel installation
• IP65 protection rating when plugged and properly secured
• Single locking lever mechanism for secure connection
• Aluminum die-cast construction for durability and strength
• Powder-coated surface finish for corrosion resistance
• Minimum 500 mating cycles for reliable long-term use
• NBR gasket material for effective sealing
• Compatible with Modlink Heavy connector inserts

Technical Specifications

• Housing Type: Bulkhead-mounted (panel mount)
• Size: B6 format
• Protection Rating: IP65 (EN 60529) when inserted and tightened
• Material: Aluminum die-cast construction
• Surface Finish: Powder-coated

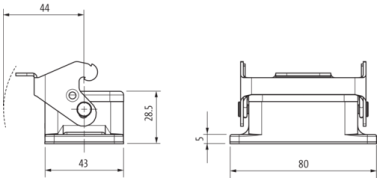

• Dimensions: 28.5 × 43 × 80mm (H × W × D)
• Locking Mechanism: Single locking lever, galvanized steel
• Gasket Material: NBR (Nitrile Butadiene Rubber)
• Operating Temperature: -40°C to +100°C
• Climatic Category: 40/100/21 (EN 60068-1)

Applications

• Industrial control panel connections
• Manufacturing equipment electrical interfaces
• Process control system installations
• Machine tool electrical connections
• Heavy-duty equipment requiring weatherproof connections
• Modular connector systems in harsh environments

Compliance & Standards

• IP65 protection rating per EN 60529
• Industrial grade construction for demanding environments
• Minimum 500 mating cycles for reliable operation
• Temperature rating suitable for industrial applications
• Compatible with Modlink Heavy connector system components

Download existing graphical data for this product:

Product Datasheet
