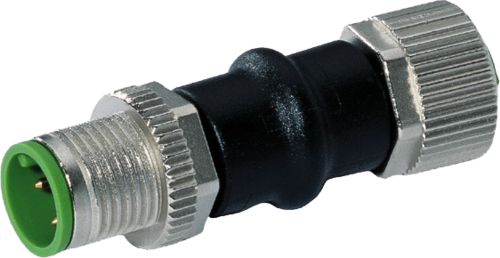

Murr Adaptor M12 male/female, 4-pole, bridge pin 1+2

Product Overview

This M12 diagnostic adapter (SKU: 7000-41241-0000000) features male and female M12 straight connectors with A-coding and integrated bridge connection for Cube67 system diagnostics. The 4-pole adapter includes an internal bridge between pins 1 and 2, specifically designed for diagnostic applications in industrial automation systems.

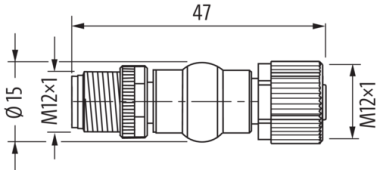

Connector Configuration:

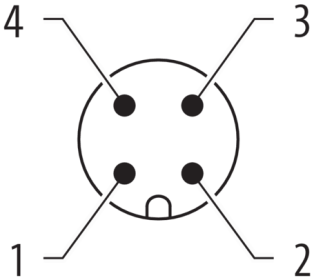

• Input: M12, 4-pole, 0° straight, A-coded (male)

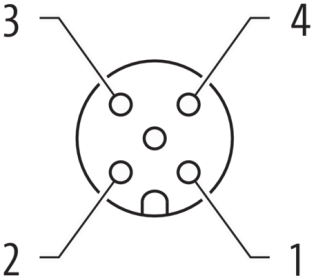

• Output: M12, 4-pole, 0° straight, A-coded (female)
• Thread: M12 x 1mm, self-securing
• Protection: IP67 when inserted and tightened
• Housing: Impact-resistant plastic
• Internal Bridge: PIN 1 + 2 connection

Diagnostic Adapter Design:

• Configuration: M12 male to M12 female pass-through
• Topology: Diagnostic bridge adapter for system testing
• Signal routing: Internal bridge connection between pins 1 and 2
• Application: Cube67 diagnostic functions
• Installation: Inline connection for diagnostic purposes

Electrical Characteristics:

• Operating voltage: 60V AC/DC max.
• Current rating: 4A max. per contact
• Conductor: 4-contact pass-through with bridge
• Contact material: Nickel-plated contacts
• Bridge function: Pins 1 and 2 internally connected

Environmental Performance:

• Operating temperature: -25°C to +85°C
• Protection rating: IP67 (when mated)
• Chemical resistance: Good resistance to chemicals and oils
• Media compatibility: Resistant to aggressive media (individual testing recommended)

Material & Construction:

• Housing: Impact-resistant plastic construction
• Contact plating: Nickel-plated for corrosion resistance
• Locking mechanism: Threaded with self-securing design
• Material compliance: RoHS compliant

Applications

Specifically designed for Cube67 diagnostic applications in industrial automation systems. The internal bridge between pins 1 and 2 enables diagnostic functions and system testing. Ideal for troubleshooting, system commissioning, and maintenance procedures where diagnostic connectivity is required while maintaining signal pass-through capability.
